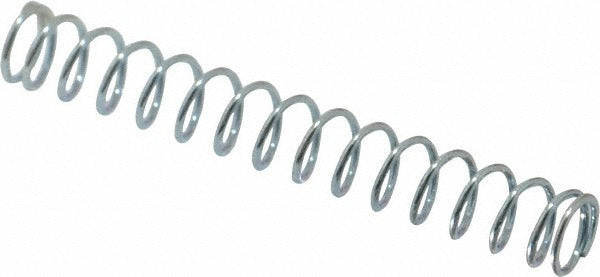

Value Collection 06810592 Compression Spring 0.24 in Od

Product Description

The VALUE COLLECTION 06810592 is a small-diameter compression spring designed for light-duty mechanical assemblies requiring consistent, repeatable linear force. With an outside diameter of 0.24 inches and a free length of 1.75 inches, this spring delivers a rated spring rate of 3.07 pounds per inch and a maximum working load of 3.32 pounds. Wire diameter measures 0.026 inches. The solid height is 0.509 inches. Licensed technicians, machinists, and mechanical assemblers working on equipment that requires precision spring components will find this part useful for maintaining consistent tension and return force in confined spring pockets.

This compression spring suits light-load applications across a range of industries including HVAC controls, plumbing valves, electrical equipment, and general mechanical assemblies. Its 0.25-inch recommended hole diameter makes it straightforward to seat in standard bored spring pockets. The compact dimensions make it well-suited for small actuators, valve stems, latching mechanisms, and similar assemblies where space is limited and precise load control is required.

Key Features

• Outside diameter of 0.24 inches fits standard 0.25-inch spring pocket bores
• Spring rate of 3.07 pounds per inch provides predictable, linear force response
• Maximum working load of 3.32 pounds rated for light-duty mechanical applications
• Wire diameter of 0.026 inches for precise coil geometry and consistent performance
• Solid height of 0.509 inches limits compression travel and prevents coil bind
• Free length of 1.75 inches provides adequate preload range for typical installations

Compatibility

Designed as a general-purpose OEM-style compression spring suitable for light-load mechanical assemblies requiring a 0.24-inch outside diameter and 1.75-inch free length specification.

Installation Notes

This spring should be installed by qualified technicians familiar with the mechanical assembly being serviced. Before replacing any spring in a pressurized or energized system, de-energize the equipment and relieve any stored mechanical or pneumatic pressure. Verify that the spring pocket diameter and depth are compatible with the specified dimensions before installation. Use appropriate hand tools to seat the spring fully and confirm coil alignment before reassembly.
