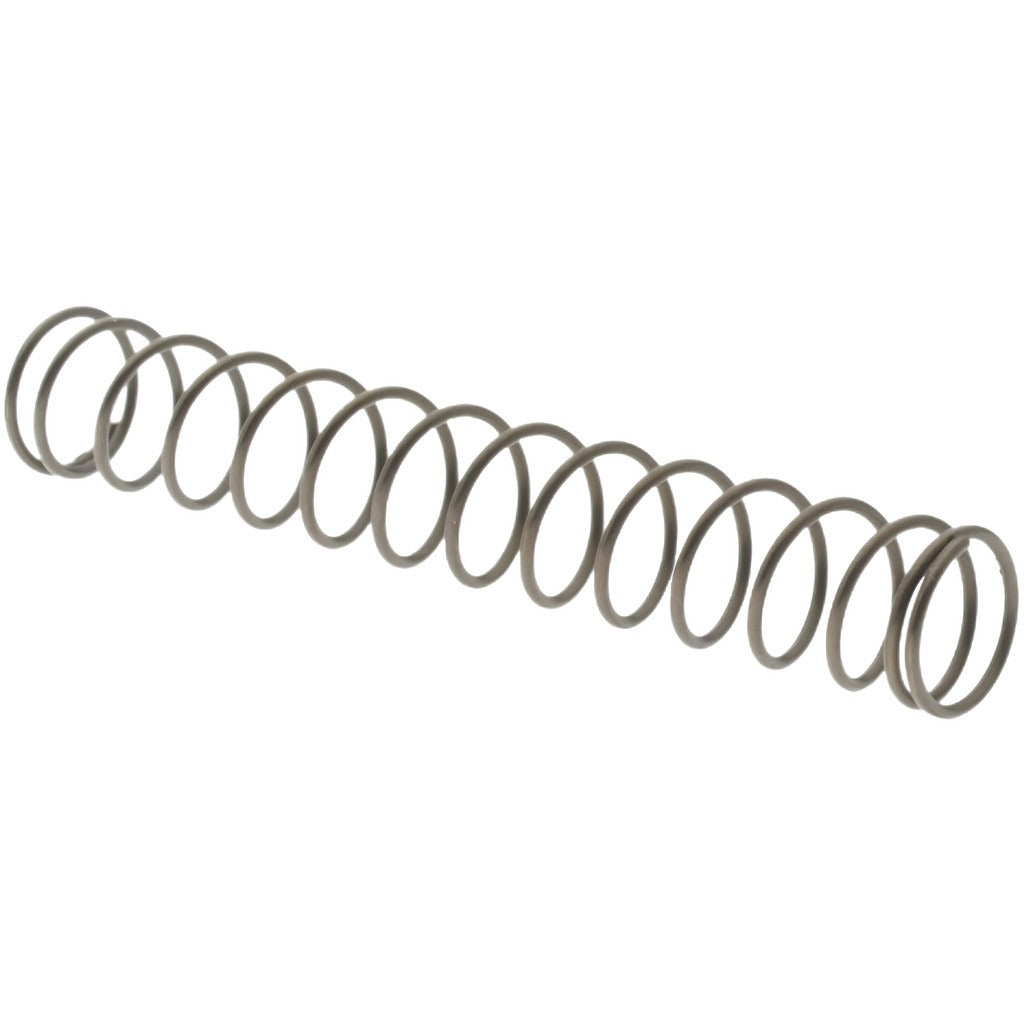

Value Collection 06810493 Compression Spring 0.24in Od

Product Description

The VALUE COLLECTION 06810493 is a small-diameter compression spring suited for light-load mechanical assemblies, fixtures, and tooling applications. It measures 0.24 inches in outside diameter with a free length of 1.5 inches and a wire diameter of 0.02 inches. The spring delivers a rated spring rate of 1.79 pounds per inch and supports a maximum work load of 1.77 pounds. Its compact profile and defined solid height of 0.301 inches make it a dependable choice where precise, repeatable resistance is required in tight spaces. Machinists, assembly technicians, and maintenance professionals typically source this part for jigs, valves, latches, or small mechanical controls.

This compression spring is intended for use in light-duty mechanical and industrial applications. Its 0.25-inch hole diameter fit makes it compatible with guided-pin assemblies where the spring slides over a post or into a bore. Typical applications include tooling fixtures, small valves, electronic hardware, and general-purpose mechanical assemblies requiring a low spring rate and minimal load. The spring is sold in packages of 10, making it practical for bench stock or multi-unit repair tasks.

Key Features

• Outside diameter of 0.24 inches fits tight-clearance assemblies
• Spring rate of 1.79 pounds per inch for consistent, predictable resistance
• Maximum work load of 1.77 pounds suitable for light-duty applications
• Solid height of 0.301 inches limits compression travel and prevents coil bind
• Wire diameter of 0.02 inches for fine-tolerance spring design
• Sold in a package of 10 for bench stock convenience

Compatibility

Designed as a general-purpose compression spring for light-load mechanical assemblies requiring a 0.24-inch outside diameter and 1.5-inch free length. Confirm outside diameter, free length, wire diameter, and spring rate against application requirements before installation.

Installation Notes

Install by a qualified machinist or maintenance technician familiar with spring-loaded assemblies. Depressurize or de-energize the host assembly fully before replacing any spring component. Verify that the mating bore or guide pin diameter aligns with the specified hole diameter of 0.25 inches to prevent buckling or misalignment under load. Do not compress the spring beyond its solid height during installation or operation.
