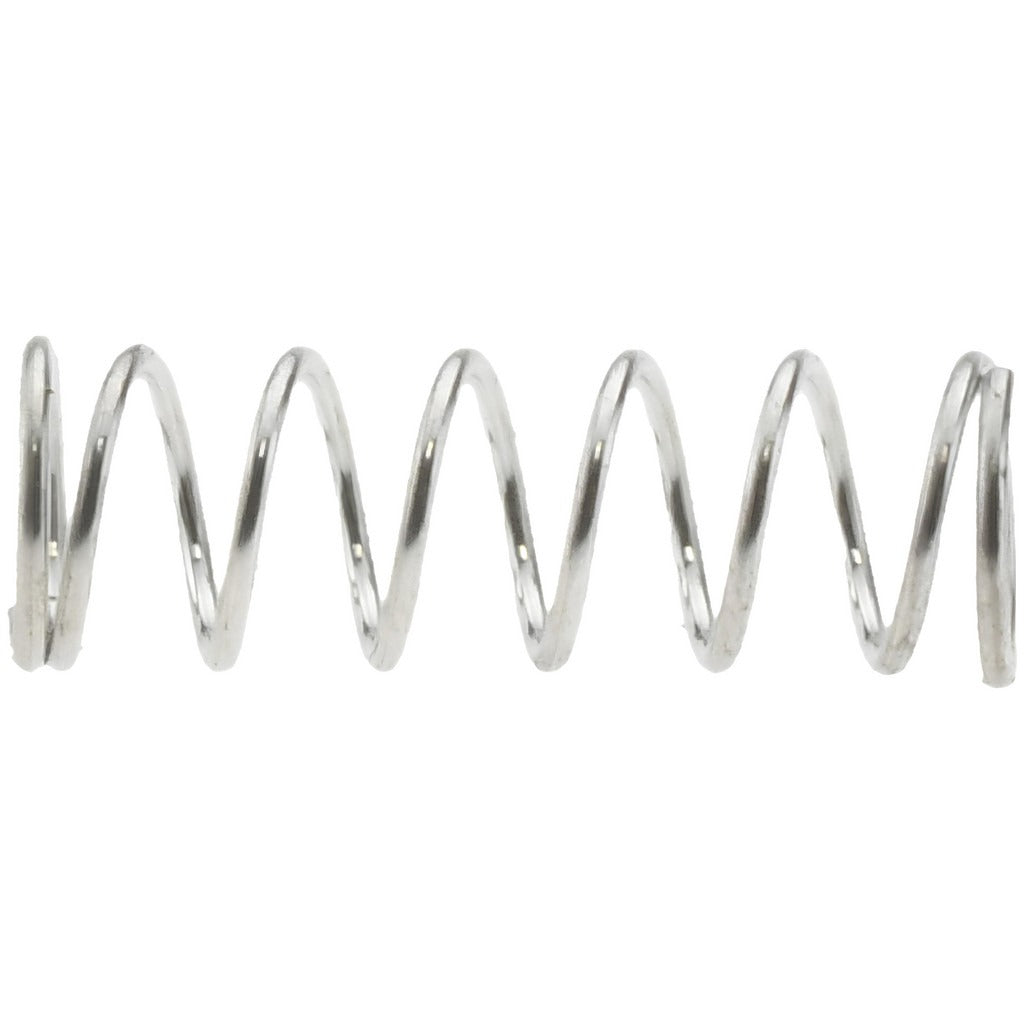

Value Collection 06810022 Compression Spring 0.12in Od

Product Description

The VALUE COLLECTION 06810022 is a small-diameter compression spring designed for light-duty mechanical applications requiring consistent return force in a compact envelope. The spring measures 0.12 inches outside diameter with a free length of 0.375 inches and a wire diameter of 0.012 inches. At a spring rate of 4.11 lb/in and a maximum work load of 0.83 pounds, it is suited for precision assemblies where controlled deflection and repeatable force are critical. Technicians and assemblers working on instrumentation, valves, switches, and small actuator mechanisms will find this spring fits tight spatial constraints without sacrificing performance.

This compression spring is appropriate for use in residential and light commercial mechanical assemblies, including small valve bodies, electrical switch mechanisms, instrument housings, and precision tooling fixtures. Its sub-inch free length and narrow outside diameter make it a common selection in OEM assemblies and field repair work where miniature spring elements are required. The solid height of 0.105 inches ensures the spring can be fully compressed within short travel mechanisms without coil bind interference. Packages contain 10 springs per unit, supporting both single-unit repairs and small-batch production runs.

Key Features

• Outside diameter of 0.12 inches fits bore or guide holes up to 0.125 inches
• Free length of 0.375 inches for compact, sub-inch installation envelopes
• Spring rate of 4.11 lb/in delivers predictable, linear deflection response
• Maximum work load of 0.83 pounds suited for light-duty return and retention functions
• Solid height of 0.105 inches minimizes coil bind risk in short-travel assemblies
• Packaged in quantities of 10 to support repair and production use

Compatibility

Designed as a general-purpose miniature compression spring for light mechanical assemblies requiring an outside diameter of 0.12 inches and a free length of 0.375 inches.

Installation Notes

Installation is typically performed by mechanical assemblers or field technicians during device repair or OEM assembly. De-energize and depressurize any system before replacing spring elements in valve or actuator assemblies. Use appropriate small-parts handling tools to avoid deforming the wire diameter during installation. Verify the mating bore or guide pin dimensions match the hole diameter specification before installing.
