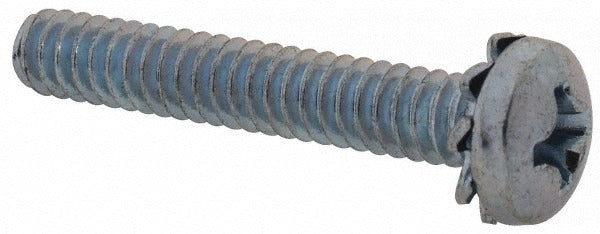

Value Collection 0614EPP 6-32 Pan Head Phillips Machine Screw

Product Description

The VALUE COLLECTION 0614EPP is a 6-32 UNC machine screw with a pan head and Phillips drive, designed for general-purpose fastening in light industrial, electrical, and mechanical assembly applications. The screw measures 7/8 inch in length under the head and is manufactured from steel with a zinc finish for basic corrosion resistance. It conforms to ASME B18.13a and SAE J82 standards and carries a Grade J82 designation. An external tooth washer style is integrated into the design, providing added locking capability under load. This fastener is sold in a package quantity of 1 with a minimum order quantity of 100 units.

This screw is suited for residential and light commercial applications where a standard 6-32 threaded fastener is required. Typical uses include securing electrical panels, junction box covers, control boards, light fixtures, and general sheet metal or equipment enclosures. The Phillips drive is compatible with standard screwdrivers and bit drivers, making installation straightforward in most field or shop environments. Electricians, HVAC technicians, and mechanical assemblers commonly use this size in both new installations and service work.

Key Features

• 6-32 UNC thread for compatibility with standard tapped holes and threaded inserts
• Pan head profile provides a low-profile, wide-bearing surface for panel and enclosure fastening
• Phillips drive works with standard screwdrivers and power bit drivers
• External tooth washer style improves locking and reduces loosening under vibration
• Zinc finish offers basic corrosion resistance for indoor and light-duty applications
• Meets ASME B18.13a and SAE J82 standards for dimensional and material consistency

Compatibility

Designed as a standard 6-32 UNC machine screw suitable for any application requiring an ASME B18.13a or SAE J82 compliant pan head Phillips fastener with a 7/8 inch length under head.

Installation Notes

This screw is installed by electricians, HVAC technicians, and mechanical assemblers using a Phillips screwdriver or a compatible power driver bit. De-energize any electrical equipment before securing or removing fasteners on panels, enclosures, or control boards. Do not overtighten, as the 6-32 thread is a small-diameter fastener and susceptible to thread stripping in soft materials. Verify that the mating thread or insert is clean and undamaged before installation.
