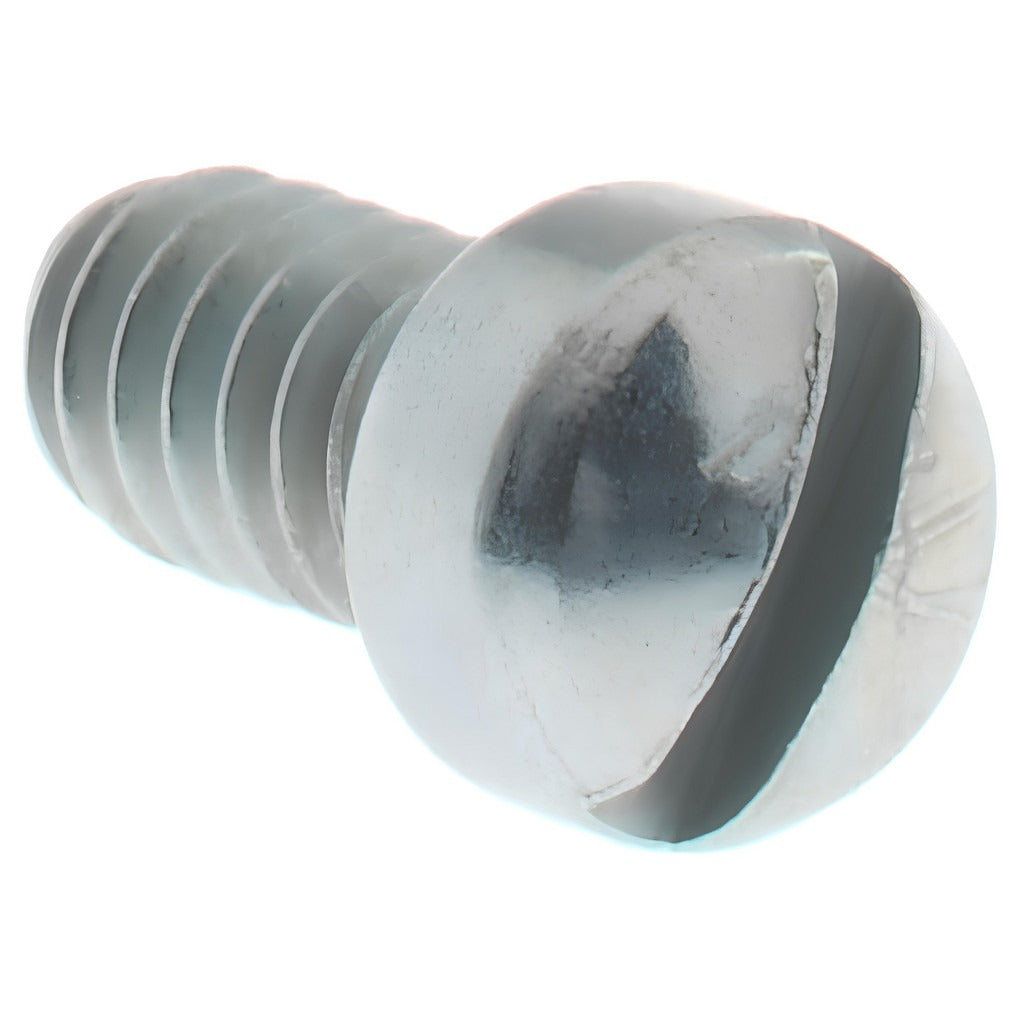

Value Collection 0604MSL 6-32 X 1/4 in Fillister Slotted Machine Screw

Product Description

The VALUE COLLECTION 0604MSL is a 6-32 threaded machine screw with a 1/4 inch length under head, designed for secure fastening in light-duty assemblies and panels. The fillister head profile offers a tall, cylindrical head with a deep slotted drive recess, providing good bit engagement in confined clearance situations. Machined from steel with a zinc finish for basic corrosion resistance, this screw conforms to ASME B18.6.3 and SAE J82 standards. It is a standard inch-series fastener suitable for general mechanical assembly work in shop, field, and facility maintenance environments.

This screw is commonly used in equipment panels, electrical enclosures, junction boxes, and light mechanical assemblies where a 6-32 thread is specified. The fillister head style is a frequent choice where a low but defined head is needed and slot drive tooling is preferred. Sold in minimum order quantities of 100 pieces per order, making it practical for service shops and contractors who need reliable fastener stock on hand.

Key Features

• 6-32 thread size, inch-series, per ASME B18.6.3 and SAE J82
• 1/4 inch length under head for precise depth control in thin material applications
• Fillister head provides a tall cylindrical profile with deep slotted drive recess
• Steel construction with zinc finish for basic corrosion resistance
• No washer face — supplied without integrated washer
• Material grade J82, conforming to SAE J82 fastener standard

Compatibility

Designed as a standard 6-32 inch-series machine screw for use in any application specifying a 6-32 x 1/4 inch fillister head slotted fastener per ASME B18.6.3 or SAE J82.

Installation Notes

Install with a flat-blade screwdriver sized to fit the slotted drive recess without slipping. Ensure the mating tapped hole or threaded insert is clean and properly threaded to 6-32 spec before driving. Do not overtighten — steel screws in small diameters are susceptible to shear if torque is excessive. Power down any electrical enclosure or equipment before accessing fastened panels.
