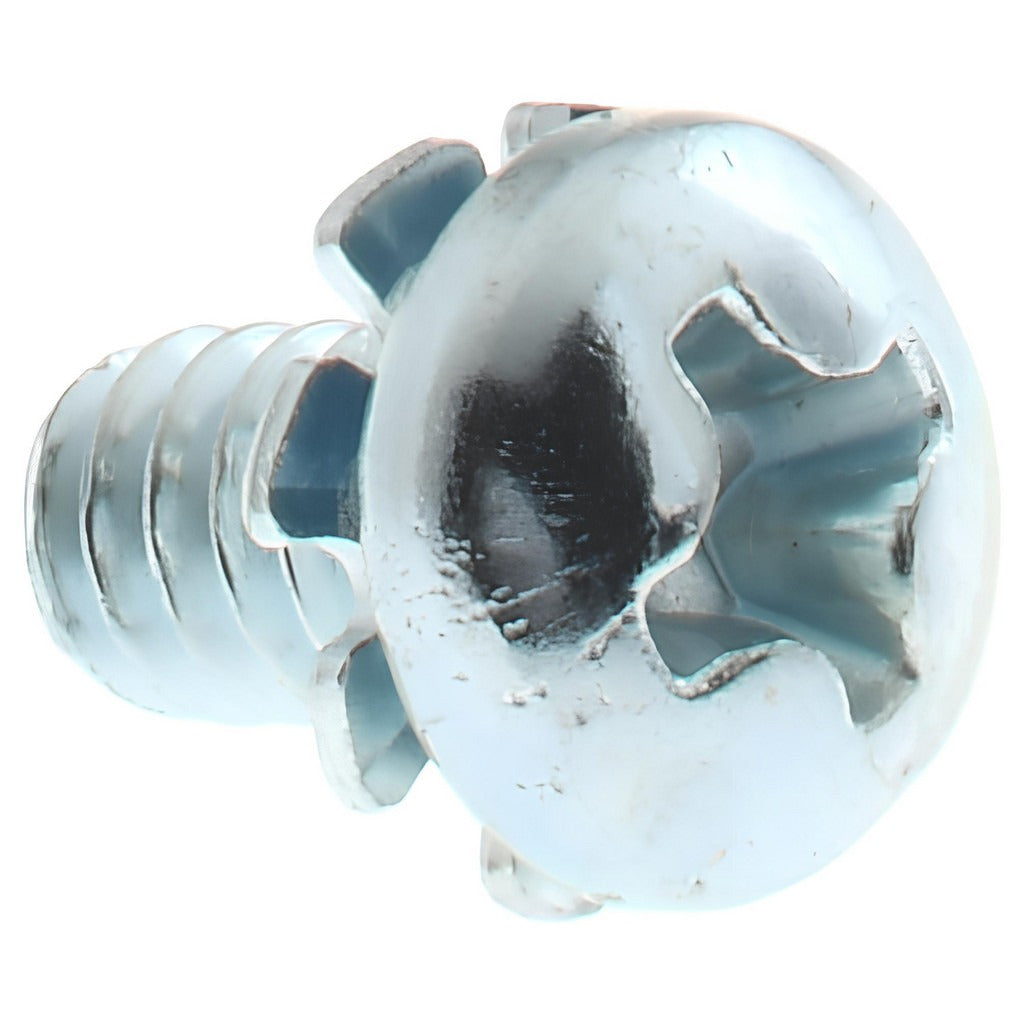

Value Collection 0604EPP 6-32 X 1/4 in Pan Head Phillips Screw

Product Description

The VALUE COLLECTION 0604EPP is a 6-32 pan head machine screw with a Phillips drive, designed for general fastening applications across mechanical assemblies, enclosures, and equipment panels. The screw measures 1/4 inch in length under the head and is manufactured from steel with a zinc finish for corrosion resistance. It conforms to ASME B18.13a and SAE J82 standards and carries a Grade J82 material designation. An external tooth washer style is integrated into the design. This screw is sold in a minimum order quantity of 100 pieces and is a standard inch-system fastener suited for light-to-medium duty threaded assembly work.

This fastener is used wherever a 6-32 threaded connection is required, including HVAC control box panels, electrical enclosures, appliance housings, and light-gauge sheet metal assemblies. The pan head profile provides a low-profile bearing surface with good drive access. The Phillips recess is compatible with standard Phillips No. 2 screwdrivers and bits. The zinc finish provides basic corrosion protection suitable for indoor and light-duty applications.

Key Features

• 6-32 thread size, inch-system standard
• 1/4 inch length under head for shallow-depth fastening
• Pan head with Phillips drive for easy installation and removal
• Steel construction with zinc finish for corrosion resistance
• External tooth washer style for added locking surface contact
• Meets ASME B18.13a and SAE J82 fastener standards

Compatibility

Designed as a standard 6-32 inch-system machine screw for use in any application requiring a pan head Phillips fastener with a 1/4 inch length under head, including panel assemblies, enclosures, and general mechanical equipment.

Installation Notes

Install using a Phillips No. 2 screwdriver or bit driver. Ensure the mating thread is tapped to 6-32 before installation. Do not overtighten, as the steel fastener can strip light-gauge or softer mating materials. Minimum order quantity of 100 pieces applies to this SKU.
