Value Collection 0603MSL 6-32 X 3/16 Fillister Head Slotted Machine

Product Description

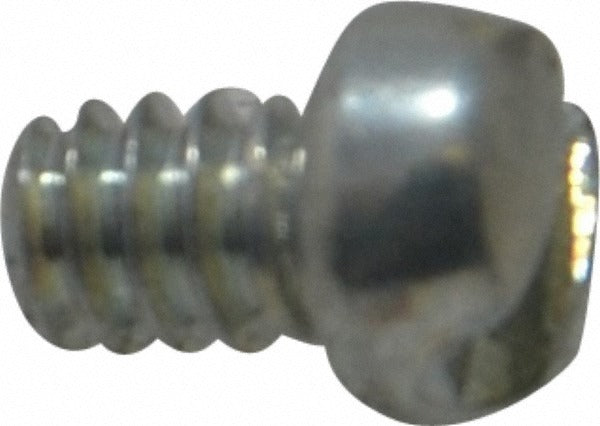

The VALUE COLLECTION 0603MSL is a 6-32 unified coarse thread machine screw with a fillister head and slotted drive, manufactured from steel with a zinc finish. The fillister head profile offers a taller, narrower head compared to a pan head, providing more bearing surface and deeper slot engagement — useful in applications where the fastener seats into a counterbored or close-tolerance hole. Measuring 3/16 inches in length under head, this screw is intended for light-duty fastening tasks in sheet metal, electrical enclosures, equipment panels, and similar assemblies. It conforms to ASME B18.6.3 and SAE J82 standards. Installation is performed by electricians, HVAC technicians, and general maintenance mechanics working on equipment panels and assemblies.

This 6-32 x 3/16-inch machine screw is suited for residential and commercial applications where a small-diameter, short-length fastener is required in pre-tapped holes or with a mating nut. Typical uses include securing control panels, electrical junction box covers, equipment enclosures, and instrument mounting. The zinc coating provides basic corrosion resistance for indoor environments. This screw is sold in multiples of 100 pieces minimum order quantity, with a package quantity of 1.

Key Features

• 6-32 unified coarse thread for broad compatibility with standard tapped holes and hex nuts
• Fillister head profile allows deeper slot engagement and suits counterbored hole applications
• Slotted drive works with standard flat-blade screwdrivers — no specialty tooling required
• Steel construction with zinc finish for basic indoor corrosion resistance
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards
• 3/16-inch length under head for low-profile or thin-material fastening

Compatibility

Designed as an OEM-style replacement or standard-stock fastener for any application requiring a 6-32 unified coarse thread machine screw with a fillister head and slotted drive conforming to ASME B18.6.3 or SAE J82.

Installation Notes

Install into a pre-tapped 6-32 hole or with a matching 6-32 nut using a flat-blade screwdriver sized to the slot. De-energize and lock out electrical panels or equipment before installing or removing fasteners on live enclosures, per applicable NFPA 70 (NEC) lockout/tagout procedures. Do not overtighten — the small thread diameter is susceptible to stripping in soft materials or shallow tap depths. Verify hole thread engagement depth before torquing.
