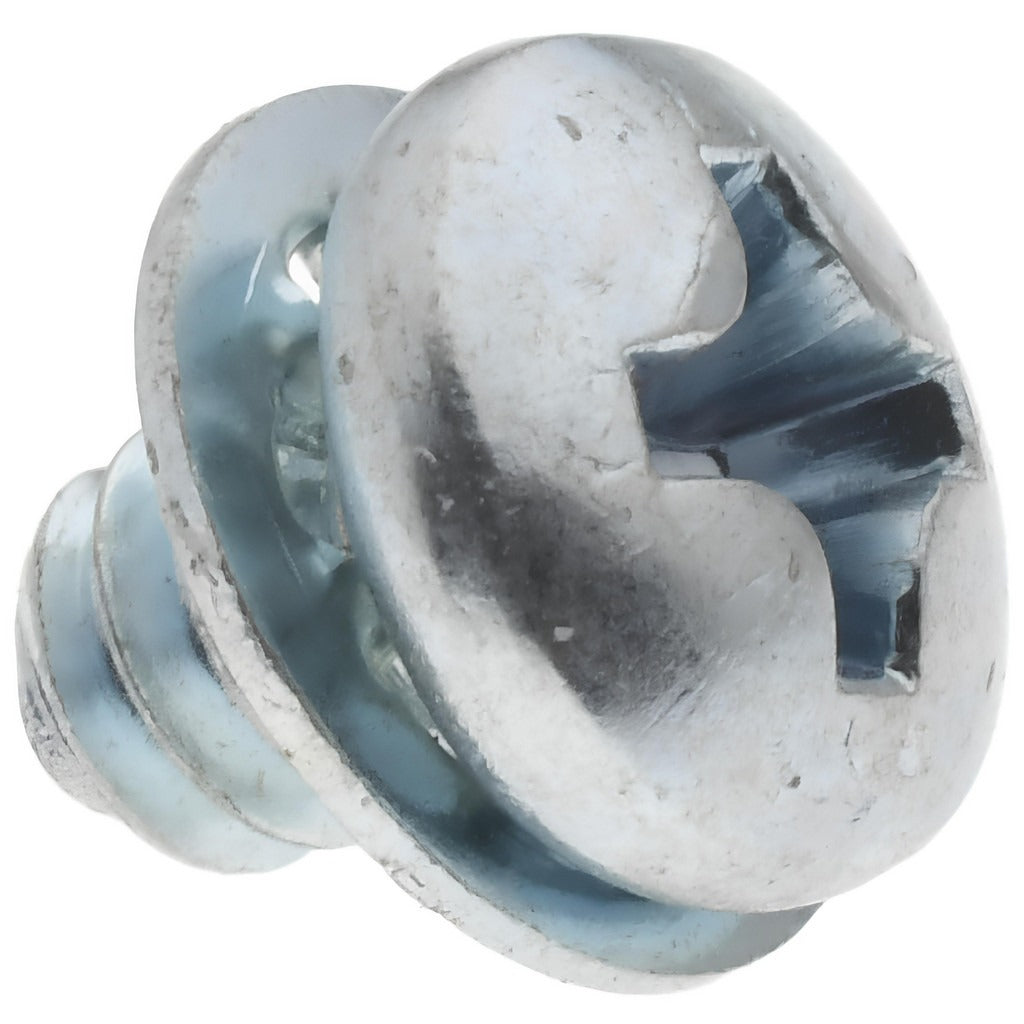

Value Collection 0603IPP 6-32 X 3/16 Pan Head Phillips Screw

Product Description

The VALUE COLLECTION 0603IPP is a 6-32 pan head Phillips drive machine screw designed for general-purpose fastening in metal assemblies. Manufactured from steel with a zinc finish, this screw measures 3/16 inches in length under the head and follows the 6-32 Unified National Coarse thread specification. It meets ASME B18.13a and SAE J82 standards, making it a reliable choice for precision-fit applications in light-duty mechanical and electrical enclosure work. The internal tooth washer style provides added vibration resistance without requiring a separate lock washer. This fastener is sold individually but carries a minimum order quantity of 100 units.

This screw is suited for use in control panel assembly, electrical enclosures, instrument mounting, and other applications requiring a compact 6-32 thread in tight clearance situations. The pan head profile provides a wide bearing surface and low-profile head height, making it appropriate for sheet metal, plastic housings, and thin-wall assemblies where a flat or oval head may not seat correctly. Electricians, HVAC technicians, and general mechanical tradespeople commonly use this fastener when securing components inside equipment cabinets and control boxes.

Key Features

• 6-32 UNC thread for standard machine screw applications
• 3/16 inch length under head for compact, tight-clearance installs
• Pan head with Phillips drive for easy installation and removal
• Zinc finish over steel for basic corrosion resistance in indoor environments
• Internal tooth washer style provides integrated vibration resistance
• Meets ASME B18.13a and SAE J82 fastener standards

Compatibility

Designed as a standard 6-32 machine screw replacement suitable for general light-duty mechanical and electrical assembly applications requiring a pan head Phillips fastener.

Installation Notes

Installation requires a Phillips screwdriver or appropriate power driver bit sized for a 6-32 screw. Verify that the mating thread is properly tapped or uses a matching 6-32 nut before installation. Do not overtighten into plastic or thin-wall sheet metal, as thread stripping can occur. When used in electrical enclosures, follow applicable NEC guidelines for equipment assembly and grounding.
