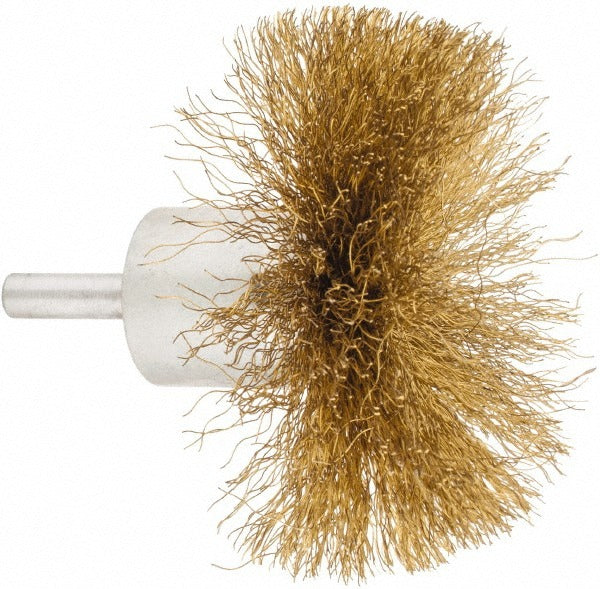

Value Collection 0402506320-1 End Brush 3in Brass Fine

Product Description

The VALUE COLLECTION 0402506320-1 is a 3-inch diameter brass end brush designed for surface finishing, cleaning, and deburring applications. The flared filament construction allows the brush to reach into recessed areas and along irregular surfaces. Brass wire with a filament diameter up to 0.0100 inches delivers fine-grade abrasion suitable for softer metals, delicate surfaces, and applications where ferrous contamination must be avoided. The shank is included for direct mounting to a rotary tool or drill, with a rated maximum speed of 15,000 RPM. Weighing approximately 0.1 pounds, it is sized for handheld power tool use.

This end brush is suited for metalworking, maintenance, and fabrication tasks where light to moderate surface prep is required. Typical applications include weld cleanup, oxide removal, and port or bore cleaning on non-ferrous components. The fine brass fill makes it appropriate for use on copper, aluminum, brass fittings, and similar soft-metal surfaces. Technicians in HVAC, plumbing, and general mechanical maintenance commonly use this style of brush when preparing tube ends or fittings ahead of soldering or inspection.

Key Features

• 3-inch brush diameter with flared filament configuration for broad surface contact
• Brass fill material prevents ferrous contamination on non-ferrous workpieces
• Fine grade wire with filament diameter up to 0.0100 inches for controlled surface action
• 15,000 RPM maximum rated speed compatible with standard rotary tools and drill motors
• Shank included for direct tool chuck mounting
• Non-piloted, non-bridled, non-encapsulated design for open-face brush action

Compatibility

Designed for use with rotary tools, die grinders, and drill motors that accept a standard end brush shank. Best suited for non-ferrous metals and soft-metal surfaces requiring fine-grade cleaning or finishing.

Installation Notes

Ensure the rotary tool or drill motor is fully powered down and the chuck is stationary before mounting or removing the brush. Confirm the tool RPM rating meets or exceeds the 15,000 RPM maximum before use, and do not exceed that rated speed. Eye protection and appropriate PPE should be worn during operation. Inspect filaments for wear or deformation before each use and replace the brush if the wire shows significant splaying or breakage.
