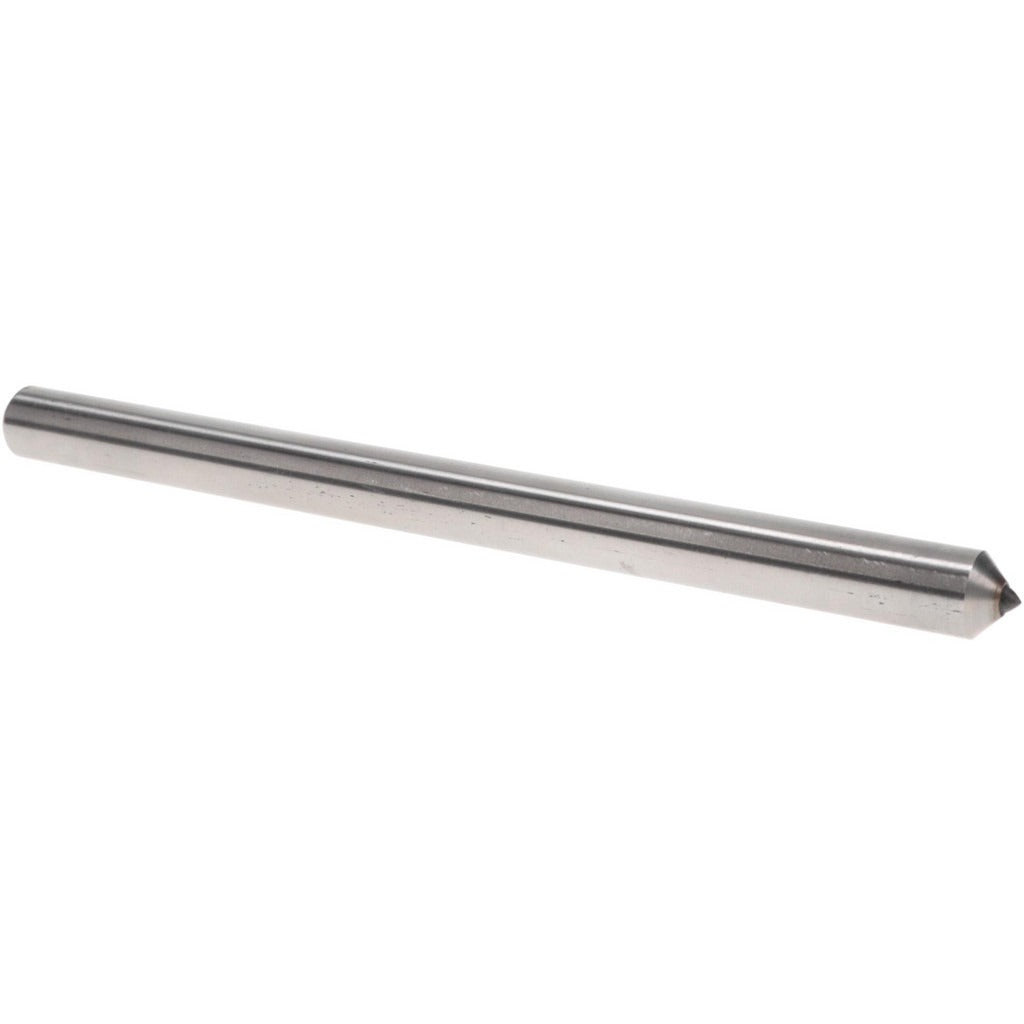

Value Collection 03531043 Diamond Dresser 1 Carat

Product Description

The VALUE COLLECTION 03531043 is a single point diamond dresser designed for truing and dressing grinding wheels in precision machining and grinding operations. The dresser features a 1 carat diamond tip mounted on a 7/16 inch diameter shank with a 6 inch shank length, providing the reach and rigidity needed for consistent wheel face preparation. Single point dressers like this one are used to restore grinding wheel geometry, remove glazing, and expose fresh abrasive grain. This tool is a standard in tool rooms, production grinding cells, and machine shops wherever surface finish and wheel profile consistency matter.

This diamond dresser is suited for use in surface grinding, cylindrical grinding, and tool and cutter grinding applications. The 6 inch shank length accommodates a range of wheel guard and spindle clearance configurations. The 7/16 inch shank diameter fits standard dresser holders and magnetic chuck-mounted fixtures commonly found in manual and CNC grinding setups. It is installed and used by machinists, tool room technicians, and grinding machine operators in both production and maintenance environments.

Key Features

• Single point diamond tip for precise grinding wheel truing and dressing
• 1 carat diamond for durable, long-service dressing performance
• 7/16 inch shank diameter fits standard dresser holders
• 6 inch shank length provides clearance flexibility at the wheel guard
• Lightweight at 0.21 pounds for easy handling and holder mounting

Compatibility

Designed as an OEM-style single point diamond dresser for use with standard grinding wheel dresser holders accepting a 7/16 inch diameter shank.

Installation Notes

Installation is performed by machinists or grinding machine operators. Before mounting or adjusting the dresser, power down the grinding machine and confirm the wheel has come to a complete stop. Secure the shank firmly in the dresser holder to the depth recommended by the holder manufacturer to prevent chatter or deflection during dressing passes. Always dress with the diamond tip positioned slightly below wheel centerline and at an angle as specified by the dresser holder manufacturer to promote even diamond wear.
