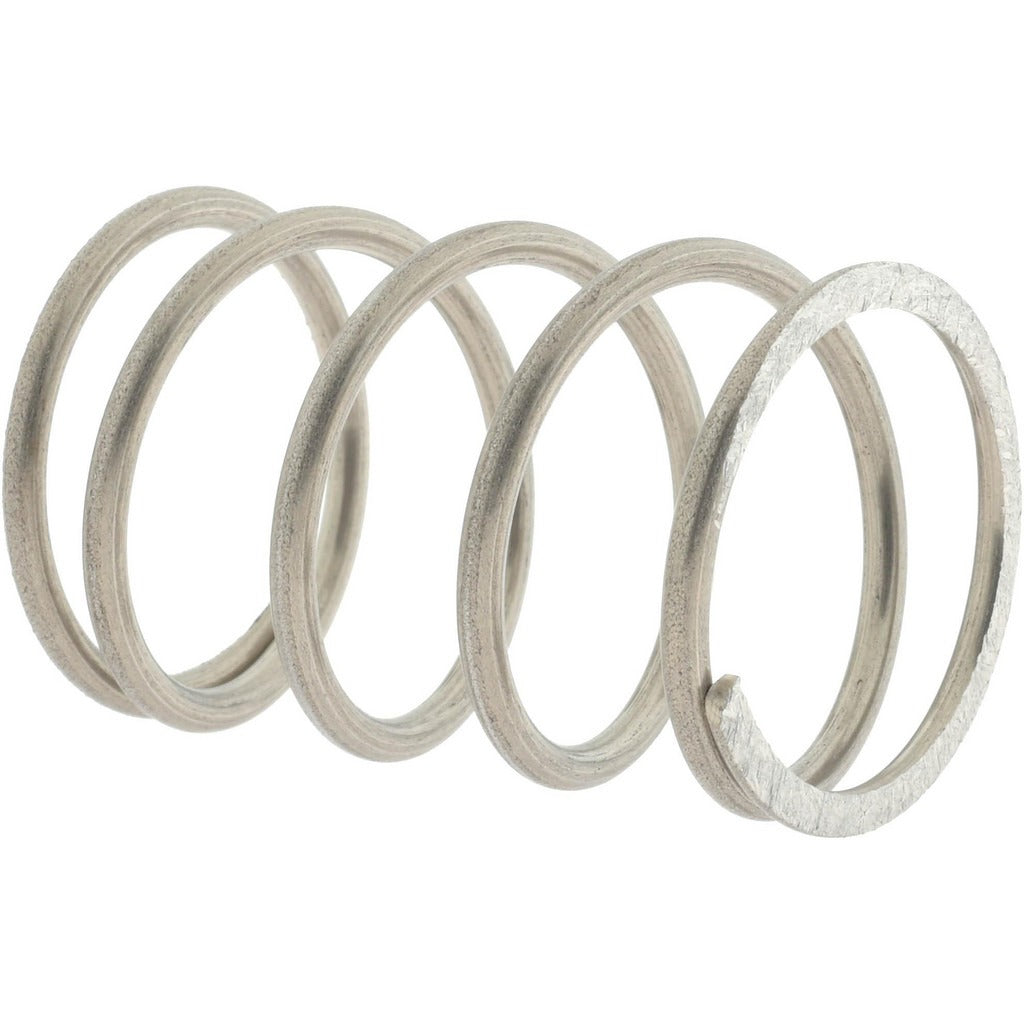

Value Collection 03309275 Compression Spring Stainless Steel

Product Description

The VALUE COLLECTION 03309275 is a stainless steel compression spring designed for light-duty mechanical and industrial applications. With an outside diameter of 0.975 inches, a free length of 1.5 inches, and a wire diameter of 0.08 inches, this spring delivers a spring rate of 19.73 lb/in and a maximum work load of 18.67 lb. The stainless steel construction provides corrosion resistance, making it suitable for environments where moisture or chemical exposure is a concern. Technicians, millwrights, and mechanical assemblers working in HVAC, plumbing, or general equipment applications use this type of spring for valve assemblies, pressure mechanisms, and actuator returns.

This compression spring fits into holes up to 1.0 inch in diameter and compresses to a solid height of 0.4370 inches. It is well suited for use in residential and light commercial mechanical assemblies where consistent spring force and compact sizing are required. Typical applications include valve actuators, pump components, and control linkages across HVAC, plumbing, and general mechanical systems.

Key Features

• Stainless steel construction resists corrosion and oxidation in wet or chemically active environments
• Spring rate of 19.73 lb/in provides predictable, linear force response
• Maximum work load of 18.67 lb suits light-duty mechanical applications
• Outside diameter of 0.975 inches fits standard 1.0 inch hole diameter
• Solid height of 0.437 inches limits compression for reliable load management
• Sold in a package of 5 with a minimum order quantity of 1

Compatibility

Designed as a standard compression spring replacement or new installation component for light-duty mechanical assemblies requiring a 0.975 inch OD, 1.5 inch free length stainless steel spring.

Installation Notes

Installation should be performed by a qualified technician familiar with the host equipment. De-energize and depressurize the system before replacing or installing any spring component. Verify that the mating bore diameter, free length clearance, and load requirements of the application match the spring specifications before installation. Do not stretch or pre-load the spring beyond its rated maximum work load of 18.67 lb.
