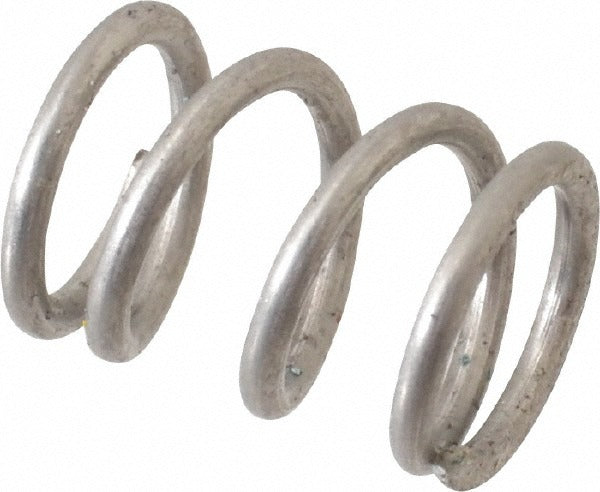

Value Collection 03308244 Compression Spring 0.36in Od

Product Description

The VALUE COLLECTION 03308244 is a stainless steel compression spring designed for light-duty mechanical applications requiring consistent force over a short travel range. With an outside diameter of 0.36 inches, a free length of 0.5 inches, and a wire diameter of 0.047 inches, this spring delivers a spring rate of 51.76 pounds per inch and a maximum work load of 10.91 pounds. The solid height measures 0.267 inches. Fabricated from stainless steel, the spring offers corrosion resistance suitable for wet, chemical, or outdoor environments. Mechanical assemblers, maintenance technicians, and equipment fabricators are the typical installers of this component.

This compression spring fits applications where a compact, small-diameter spring is needed to provide resistance or return force within a confined space. It is suited for use in valves, switches, latches, tooling fixtures, and light mechanical assemblies across industrial, HVAC, plumbing, and general equipment environments. The 0.375-inch hole diameter fitment guideline and 0.267-inch solid height make it appropriate for short-stroke, high-rate applications where precise load control is required within a small footprint.

Key Features

• Stainless steel construction provides corrosion resistance for wet and chemical environments
• Spring rate of 51.76 pounds per inch for predictable, linear force output
• Maximum work load of 10.91 pounds within a 0.5-inch free length
• Outside diameter of 0.36 inches fits a 0.375-inch housing bore
• Wire diameter of 0.047 inches with a solid height of 0.267 inches
• Sold in a package of 10 springs for stock and replacement use

Compatibility

Designed as a general-purpose replacement or original-equipment compression spring for mechanical assemblies requiring a 0.36-inch OD, 0.5-inch free length, stainless steel spring with a 51.76 pounds-per-inch spring rate.

Installation Notes

Installation is performed by mechanical technicians or equipment assemblers using standard hand tools. Ensure the mating bore diameter accommodates the 0.375-inch hole diameter specification before installation. De-energize or depressurize any system before removing or replacing a compression spring to prevent sudden release of stored energy. Do not compress the spring beyond its solid height during installation or operation.
