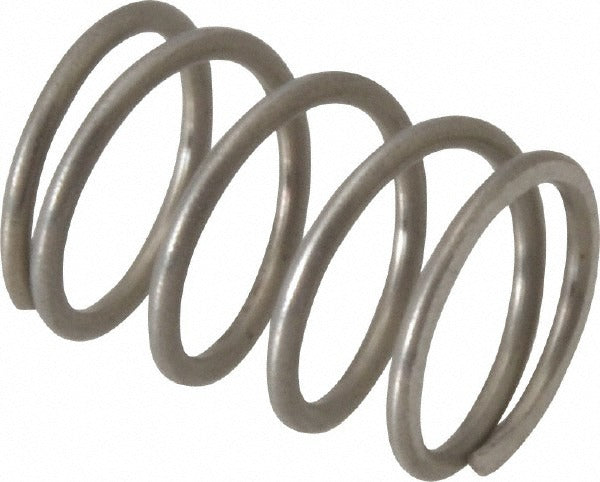

Value Collection 03308160 Compression Spring 0.36in Od

Product Description

The VALUE COLLECTION 03308160 is a stainless steel compression spring designed for light-duty mechanical applications requiring consistent return force across a short travel range. With an outside diameter of 0.36 inches and a free length of 0.5 inches, this spring fits into tight assemblies where space is at a premium. It carries a maximum work load of 4.82 pounds and a spring rate of 20.17 pounds per inch, making it well-suited for applications where controlled, predictable deflection is critical. The 0.035-inch wire diameter and stainless steel construction provide corrosion resistance in wet or chemical-exposed environments. Machinists, maintenance technicians, and mechanical assemblers are the primary installers of this component.

This compression spring is used across a wide range of industrial and mechanical assemblies, including valve mechanisms, instrumentation, latching hardware, and light-duty tooling fixtures. Its compact dimensions make it a practical choice for precision assemblies in both OEM manufacturing and MRO maintenance applications. The stainless steel material suits environments where mild corrosion resistance is required. It is packaged in quantities of 10, which is standard for bench-stock and small-batch assembly operations.

Key Features

• Outside diameter of 0.36 inches fits standard 0.375-inch (3/8 inch) hole diameter
• Spring rate of 20.17 pounds per inch for predictable, linear deflection
• Maximum work load of 4.82 pounds suitable for light-duty mechanical assemblies
• Stainless steel construction resists corrosion in wet or chemically exposed environments
• Solid height of 0.179 inches allows compact fully-compressed clearance in tight assemblies
• Packaged in quantities of 10 for bench-stock and small-batch use

Compatibility

Designed as a general-purpose OEM-style compression spring for mechanical assemblies requiring a 0.36-inch outside diameter and 0.5-inch free length with a 3/8-inch hole diameter fitment.

Installation Notes

Installation is typically performed by machinists or mechanical assemblers using standard hand tools. Verify the mating bore diameter and seat geometry before installation to ensure proper spring alignment and seating. Avoid overstressing the spring beyond its rated maximum work load, as this can cause permanent set. Inspect the mating surfaces for burrs or sharp edges that could damage the wire coils during compression.
