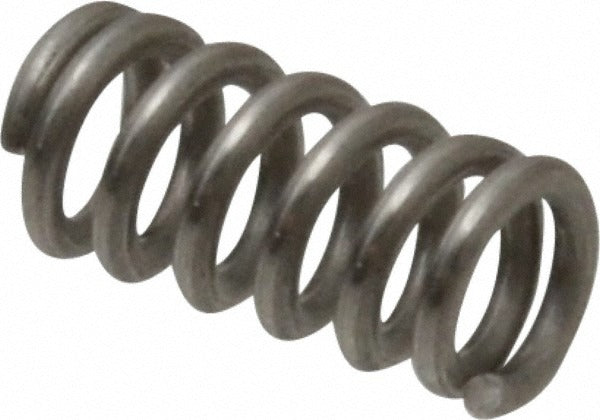

Value Collection 03307733 Compression Spring Stainless Steel

Product Description

The VALUE COLLECTION 03307733 is a small-diameter compression spring manufactured from stainless steel. It measures 0.12 inches outside diameter with a free length of 0.25 inches and a wire diameter of 0.02 inches. The spring delivers a rated spring rate of 40.33 lb/in and handles a maximum working load of 2.83 pounds. Its stainless steel construction provides corrosion resistance in wet, chemical-exposure, or high-humidity environments. Maintenance technicians, assemblers, and mechanical engineers use these springs in light-duty actuator assemblies, valve mechanisms, instrumentation, and similar precision hardware applications.

This compression spring is suited for use in compact mechanical assemblies where a short travel distance and high spring rate relative to size are required. Typical applications include miniature valve bodies, relay mechanisms, instrument housings, and control hardware found in HVAC, plumbing, electrical, and light industrial equipment. The solid height of 0.155 inches and a designed hole diameter of 0.125 inches guide fitment into standard bored housings or over small mandrels. This spring is packaged in quantities of 10, making it practical for bench stock and field repair kits.

Key Features

• 0.12 inches outside diameter for use in compact, space-constrained assemblies
• 40.33 lb/in spring rate provides firm, consistent return force in a short stroke
• Maximum working load of 2.83 pounds within a 0.25 inches free length envelope
• Stainless steel construction resists corrosion in wet or chemically active environments
• 0.02 inches wire diameter for precise, small-scale spring force applications
• Packaged in quantities of 10 for bench stock, service kits, or low-volume assembly runs

Compatibility

Designed as a general-purpose replacement or stock compression spring for compact mechanical assemblies requiring a 0.12 inches outside diameter and 0.25 inches free length with a 0.125 inches hole diameter fitment.

Installation Notes

Installation is typically performed by a qualified technician or assembler during equipment repair or new assembly. Verify the mating bore diameter and mandrel size match the 0.125 inches hole diameter specification before installation. De-energize or depressurize any system before replacing internal springs in valve bodies or actuator assemblies. Do not compress the spring beyond its solid height of 0.155 inches during installation or operation.
