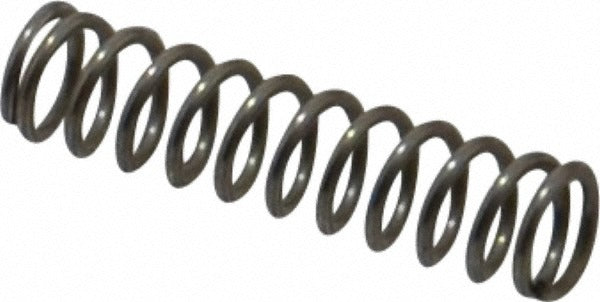

Value Collection 03307709 Compression Spring Stainless Steel

Product Description

The VALUE COLLECTION 03307709 is a small-diameter compression spring manufactured from stainless steel. It measures 0.12 inches outside diameter with a free length of 0.50 inches and a wire diameter of 0.016 inches. The spring delivers a rated spring rate of 7.01 lb/in and handles a maximum working load of 1.54 pounds. At solid height, the coil stack compresses to 0.207 inches. These springs are suited for precision mechanical assemblies, instrumentation, and light-duty fastening or retention applications where corrosion resistance is required. Installation is handled by mechanical assemblers, maintenance technicians, or OEM production personnel.

This compression spring is designed for applications requiring a compact, corrosion-resistant coil in tight-clearance housings. The 0.125-inch hole diameter fit makes it compatible with small-bore spring pockets and guide pins commonly found in valves, switches, latches, sensors, and light mechanical assemblies. The stainless steel construction makes it appropriate for wet, chemical-exposure, or outdoor environments where carbon steel would be unsuitable. Sold in packages of 10, these springs support both repair and production-volume work.

Key Features

• Stainless steel construction provides corrosion resistance in harsh or wet environments
• 0.12-inch outside diameter fits into 0.125-inch hole diameter pockets and guide-pin assemblies
• 7.01 lb/in spring rate delivers consistent, predictable force across the compression stroke
• 1.54-pound maximum working load rated for light-duty retention and actuation tasks
• 0.50-inch free length and 0.207-inch solid height suit compact, space-constrained assemblies
• Packaged in quantities of 10 to support both single repairs and small production runs

Compatibility

Designed as a general-purpose compression spring for light mechanical assemblies requiring a 0.12-inch outside diameter and 0.50-inch free length coil in stainless steel.

Installation Notes

Installation is performed by mechanical technicians or assemblers using standard hand tools. Confirm the mating bore or guide-pin diameter matches the 0.125-inch hole diameter specification before installation. Relieve any stored mechanical energy in the assembly before removing or replacing the spring. Do not stretch or overcompress the spring beyond its solid height during fitment.
