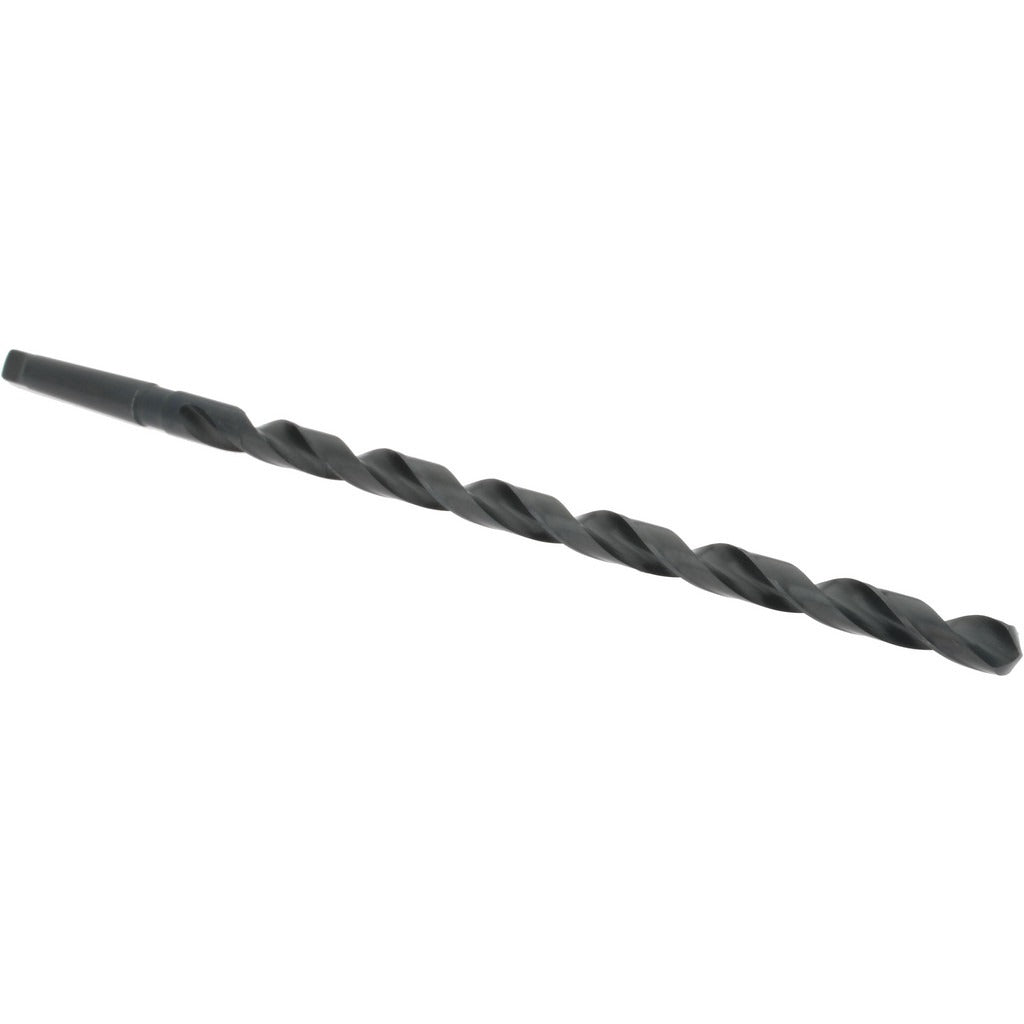

Value Collection 01664465 Taper Shank Drill Bit 23/32in 2MT

Product Description

The VALUE COLLECTION 01664465 is a taper shank drill bit designed for general-purpose metal drilling in industrial and trade applications. Built from high-speed steel (HSS) with an oxide finish, it features a 23/32-inch diameter, a 118-degree standard point angle, and a web-thinned tip for reduced thrust during entry. The 2MT (Morse Taper 2) shank seats directly into compatible drill presses and machine spindles without a separate chuck. Right-hand spiral flutes evacuate chips efficiently throughout the cut. Machinists, tool-and-die workers, and maintenance technicians are the primary users of this style of bit.

This bit is suited for drilling ferrous and non-ferrous metals in shop and production environments. The 18-inch overall length and 12-inch flute length make it appropriate for deep-hole drilling operations where a standard jobber-length bit cannot reach. The regular spiral and general-purpose geometry handle a wide range of workpiece materials. It is a single-piece unit packaged individually.

Key Features

• 23/32-inch diameter (0.7188 inches decimal) for precise hole sizing
• 2MT Morse Taper shank for direct spindle mounting on compatible machines
• 118-degree standard point angle with web-thinned tip to reduce entry thrust
• High-speed steel construction with oxide finish for general-purpose durability
• 12-inch flute length and 18-inch overall length for deep-hole applications
• Right-hand cutting direction with regular spiral flute for efficient chip evacuation

Compatibility

Designed for use with drill presses, lathes, and milling machines equipped with a No. 2 Morse Taper (2MT) spindle or tailstock socket.

Installation Notes

Installation is performed by machinists or maintenance technicians familiar with machine tool operation. Power down and lock out the machine before seating or removing the taper shank. Clean both the shank and the spindle socket before insertion to ensure full taper contact and prevent runout. Use a proper drift and drift slot to safely eject the bit from the spindle — do not strike the bit directly.
