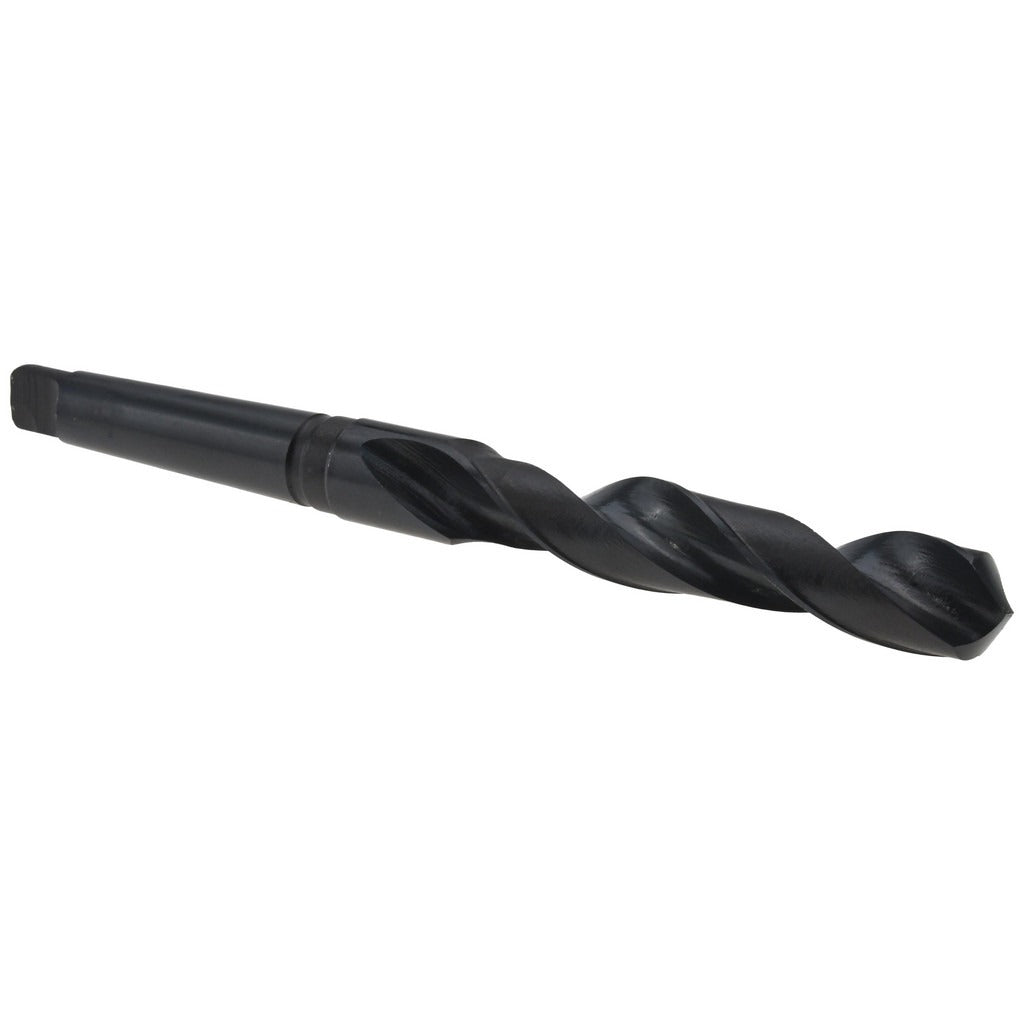

Value Collection 01568146 Taper Shank Drill Bit 26.5mm 3MT

Product Description

The VALUE COLLECTION 01568146 is a taper shank drill bit designed for general-purpose hole-making in metal fabrication, machining, and maintenance applications. It measures 26.5 mm (1.0433 inches) in diameter and features a 3MT (Morse Taper 3) shank for direct mounting in compatible drill press spindles, lathes, and milling machine quills. The bit is manufactured from high-speed steel with an oxide finish that provides mild corrosion resistance and reduces friction during cutting. A 118-degree standard point angle suits a wide range of common metals and general shop materials. Right-hand spiral flutes with web thinning improve chip evacuation and reduce the thrust needed to start and maintain the cut.

This drill bit is suited for use in machine shop environments, maintenance and repair operations, and production drilling setups where a taper shank interface is required. The 3MT shank fits standard Morse taper sockets and adapters found on most floor-standing and bench drill presses as well as engine lathes. With an overall length of 286 mm (11.26 inches) and a flute length of 165 mm (6.50 inches), it handles moderate-depth through-hole and blind-hole work in ferrous and non-ferrous stock.

Key Features

• 26.5 mm (1.0433 inch) cutting diameter for precise hole sizing
• 3MT taper shank for secure, self-holding mounting in standard Morse taper spindles
• 118-degree standard point angle for general-purpose drilling in common metals
• High-speed steel construction with oxide finish for durability and reduced friction
• Web-thinned point reduces thrust requirements and improves centering
• Right-hand regular spiral flutes promote efficient chip evacuation

Compatibility

Designed as a general-purpose replacement or stock taper shank drill bit for use in any machine spindle, drill press quill, or lathe tailstock fitted with a 3MT (Morse Taper 3) socket or adapter sleeve.

Installation Notes

Installation is performed by machinists or tool-and-die professionals on properly secured machine tools. Power down and lock out the machine before inserting or removing the taper shank. Clean both the shank and the taper socket with a lint-free cloth before seating to ensure full contact and prevent slippage during operation. Never use the drill bit in a hand drill or keyless chuck not rated for taper shank tooling.
