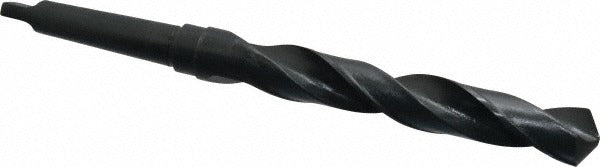

Value Collection 01567726 Taper Shank Drill Bit 23mm 2MT Hss

Product Description

The VALUE COLLECTION 01567726 is a taper shank drill bit designed for metal fabrication, machining, and general-purpose drilling in drill presses and milling machines equipped with a Morse taper spindle. The bit measures 23mm (0.9055 inches) in diameter with a No. 2 Morse Taper (2MT) shank for secure, self-holding engagement in compatible spindles. Constructed from high-speed steel (HSS) with an oxide finish for basic corrosion resistance, it features a 118-degree standard point angle and a right-hand spiral flute for efficient chip evacuation. A web-thinned point reduces thrust requirements during entry and improves hole accuracy. This is a general-purpose bit suited for machinists, tool-and-die workers, and maintenance trades working in production or job-shop environments.

This drill bit is appropriate for drilling through mild steel, aluminum, cast iron, and similar materials in both light production and maintenance applications. The 2MT shank makes it compatible with drill press quills, lathe tailstocks, and milling machine spindles that accept No. 2 Morse Taper tooling. The 155mm (6.10 inches) flute length accommodates moderate hole depths, while the 253mm (9.96 inches) overall length provides adequate reach for most standard drilling setups. Coolant-through capability is not supported on this bit.

Key Features

• 23mm diameter with web-thinned 118-degree standard point for reduced entry thrust and clean starts
• No. 2 Morse Taper (2MT) shank for self-holding fit in compatible spindles and tailstocks
• High-speed steel construction supports general-purpose drilling in ferrous and non-ferrous materials
• Oxide finish provides basic surface protection during storage and use
• Right-hand regular spiral flute promotes efficient chip removal during drilling
• 155mm flute length supports moderate hole depths without flute packing

Compatibility

Designed for use in drill press quills, lathe tailstocks, and milling machine spindles accepting No. 2 Morse Taper tooling. Suitable for general-purpose drilling in mild steel, aluminum, and similar materials.

Installation Notes

Installation and removal of Morse taper tooling should be performed by a qualified machinist following shop safety procedures. Ensure the spindle bore and taper shank are clean and free of chips or burrs before seating the bit to achieve full taper engagement. Disconnect or lock out power to the machine before inserting or removing the bit. Use a drift key and mallet in the spindle drift slot for safe removal — never strike the bit directly.
