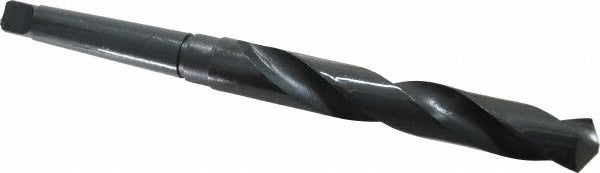

Value Collection 01567486 Taper Shank Drill Bit 21mm 2MT

Product Description

The VALUE COLLECTION 01567486 is a taper shank drill bit designed for general-purpose metal drilling in professional shop and industrial environments. Built from high-speed steel with an oxide finish, it accepts a Morse taper No. 2 (2MT) shank for use in drill presses and lathes equipped with matching taper spindles. The cutting geometry features a 118-degree standard point with web thinning to reduce entry force and a regular right-hand spiral flute for efficient chip evacuation. This bit suits machinists, tool-and-die workers, and maintenance mechanics who need a reliable 21 mm boring solution in ferrous and non-ferrous materials.

This drill bit is intended for general-purpose drilling operations in machine shop, maintenance, and production environments. The 2MT taper shank seats directly into compatible drill press spindles, lathe tailstocks, or taper-shank tool holders without a separate chuck. The 21 mm diameter and 145 mm flute length make it suitable for through-hole and blind-hole drilling in mild steel, cast iron, aluminum, and similar materials where a standard-point geometry performs reliably.

Key Features

• 21 mm cutting diameter with 0.8268 inch decimal equivalent for precise hole sizing
• No. 2 Morse taper (2MT) shank seats directly in compatible machine spindles
• 118-degree standard point with web thinning for reduced thrust on entry
• Right-hand regular spiral flute promotes consistent chip evacuation
• High-speed steel construction with oxide finish for general-purpose durability
• No coolant-through requirement — compatible with external flood or dry cutting

Compatibility

Designed as a general-purpose replacement or stock drill bit for drill presses, lathe tailstocks, and milling machines equipped with a No. 2 Morse taper spindle or sleeve adapter.

Installation Notes

Installation is performed by machinists or maintenance mechanics on machines with a matching 2MT spindle. Before seating the bit, power down and lock out the machine per OSHA lockout/tagout procedures. Clean the taper shank and spindle bore of chips and oil before inserting to ensure full contact and prevent slippage. A drift key and drift slot should be used to properly seat and, when required, remove the shank — never use the drill chuck jaws to hold a taper shank bit.
