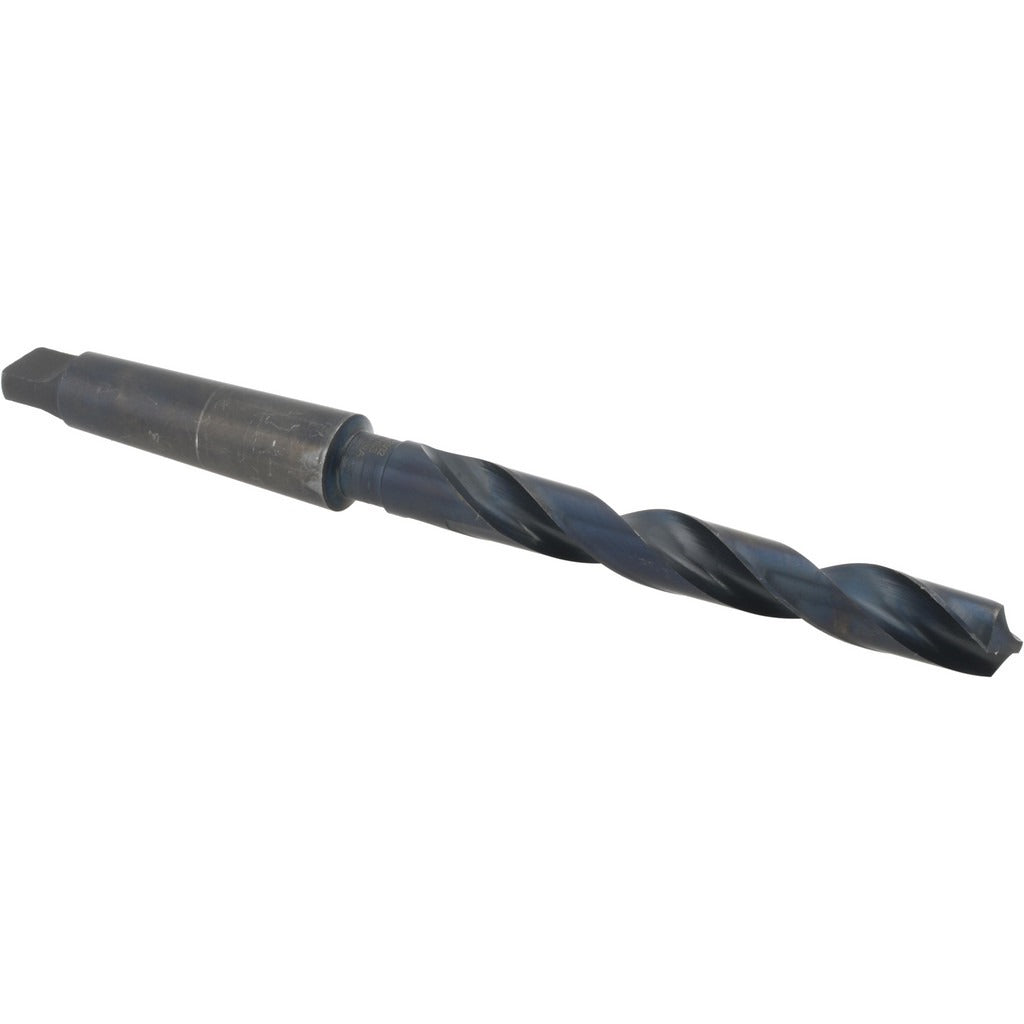

Value Collection 01566553 Taper Shank Drill Bit 13.75mm 1MT

Product Description

The VALUE COLLECTION 01566553 is a taper shank twist drill bit designed for general-purpose metal drilling in machine shop and maintenance environments. Ground from high-speed steel with an oxide finish, it handles ferrous and non-ferrous materials at standard cutting speeds. The 13.75 mm (0.5413 inch) diameter paired with a Morse Taper 1 shank seats directly into compatible drill press spindles, lathes, and milling machine quills without a chuck. The 118-degree standard point angle and web-thinned tip reduce thrust load and improve self-centering on entry. Coolant-through capability is not included in this configuration.

This bit is suited for production and maintenance drilling operations on drill presses, lathes, and similar machine tools that accept a 1MT taper shank directly. It is appropriate for general-purpose applications in steel, cast iron, aluminum, and similar materials. The right-hand spiral flute and regular helix provide consistent chip evacuation during through-hole and blind-hole drilling at moderate feed and speed rates. It is typically selected by machinists, tool and die technicians, and industrial maintenance mechanics.

Key Features

• 13.75 mm (0.5413 inch) diameter for precise metric-spec hole sizing
• Morse Taper 1 shank for direct spindle mounting without a drill chuck
• 118-degree standard point angle with web-thinned tip to reduce entry thrust
• High-speed steel construction with oxide finish for general-purpose durability
• Right-hand spiral flute with regular helix for reliable chip evacuation
• 108 mm (4.252 inch) flute length accommodates moderate-depth holes

Compatibility

Designed for use in machine tools equipped with a Morse Taper 1 spindle socket, including drill presses, engine lathes, and milling machines configured for 1MT tooling.

Installation Notes

Installation is performed by qualified machinists or maintenance mechanics. Power down and lock out the machine before inserting or removing the taper shank. Clean both the shank and spindle socket thoroughly before seating to ensure full taper engagement and prevent slippage under load. Never use a hammer directly on the drill body to seat or remove the taper; use a proper drift key through the spindle slot for removal.
