Value Collection 01552322 Taper Shank Drill Bit 2.5in 5MT Hss

Product Description

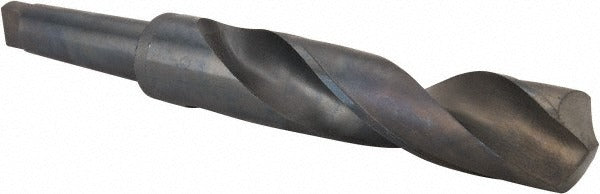

The VALUE COLLECTION 01552322 is a taper shank drill bit designed for heavy-duty drilling in metal, steel, and hard materials. Built from high-speed steel with an oxide finish, it measures 2.5 inches in diameter and seats into a 5MT (Morse Taper 5) spindle. The 118-degree standard point with web thinning reduces thrust at entry and keeps the bit tracking true on tough stock. At 17 inches overall length with a 9.625-inch spiral flute, this bit handles deep-bore applications that shorter jobber-length bits cannot reach. Machinists, tool-and-die shops, and heavy fabrication crews are the primary users.

This drill bit is suited for use in heavy-duty drill presses, radial arm drills, and large floor-standing machines that accept a 5MT spindle taper. It is a general-purpose cutting tool intended for right-hand rotation in ferrous and non-ferrous metals. The spiral flute design clears chips efficiently during deep-hole drilling operations, reducing heat buildup and extending tool life in production environments.

Key Features

• 2.5-inch diameter with a 118-degree standard point angle for general-purpose drilling
• Web-thinned point reduces cutting resistance and improves centering on entry
• High-speed steel construction handles intermittent high-heat cutting cycles
• Oxide finish provides light corrosion resistance and reduces friction at the cutting edge
• 9.625-inch spiral flute length supports deep-bore chip evacuation
• Right-hand cutting direction with regular spiral geometry for standard spindle rotation

Compatibility

Designed for use in machine tool spindles with a 5MT (Number 5 Morse Taper) socket, common on large drill presses, lathes with tailstock boring capability, and similar heavy-duty machine tools.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. De-energize and lock out the machine before inserting or removing the taper shank. Ensure the 5MT socket and shank are clean and free of chips or burrs before seating, as contamination will cause runout. Use the appropriate drift and slot to remove the bit; never strike the spindle housing directly.
