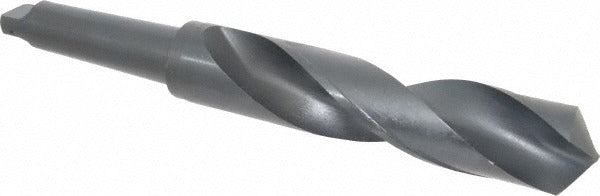

Value Collection 01552249 Taper Shank Drill Bit 5MT Hss

Product Description

The VALUE COLLECTION 01552249 is a taper shank drill bit designed for heavy-duty drilling in metal, steel, and similar materials. Built from high-speed steel with an oxide finish, it features a 2.375-inch diameter cutting edge and a No. 5 Morse taper shank for secure seating in compatible machine spindles and drill press chucks. The 118-degree standard point angle suits general-purpose hole-making, while the web-thinned tip reduces thrust and improves penetration. Spiral fluting runs 9.5 inches to clear chips efficiently during deep-hole operations. Machinists, tool-and-die workers, and maintenance mechanics typically reach for this size when drilling large-diameter bores on a drill press, lathe, or milling machine.

This bit is suited for general-purpose metalworking applications in machine shops, fabrication facilities, and industrial maintenance environments. The large 2-3/8-inch diameter puts it firmly in the category of production and structural drilling rather than hand-held work. A No. 5 Morse taper shank means the bit seats directly into a matching spindle taper, eliminating the need for a separate chuck on properly equipped machines. Right-hand cutting direction is standard for conventional spindle rotation. No coolant-through capability is present, so flood or mist cooling at the cutting zone is recommended for extended cuts in tough materials.

Key Features

• 2-3/8-inch (2.375-inch) cutting diameter for large-bore drilling
• No. 5 Morse taper (5MT) shank for direct spindle mounting
• High-speed steel construction for durability in general-purpose metalworking
• 118-degree standard point angle with web-thinning to reduce entry thrust
• 9.5-inch spiral flute length promotes efficient chip evacuation in deep holes
• Right-hand cutting direction, oxide finish for corrosion resistance

Compatibility

Designed for use in machine spindles, drill presses, lathes, and milling machines equipped with a No. 5 Morse taper socket. Verify spindle taper designation before installation to confirm proper fit.

Installation Notes

Installation and operation should be performed by a qualified machinist or skilled tradesperson familiar with large-diameter taper shank tooling. Always power down and lock out the machine before inserting or removing the bit from the spindle. Seat the taper fully using a drift and mallet if required, and confirm the tang is properly engaged before resuming operation. Use adequate cutting fluid or mist cooling at the work zone to manage heat buildup during extended drilling cycles.
