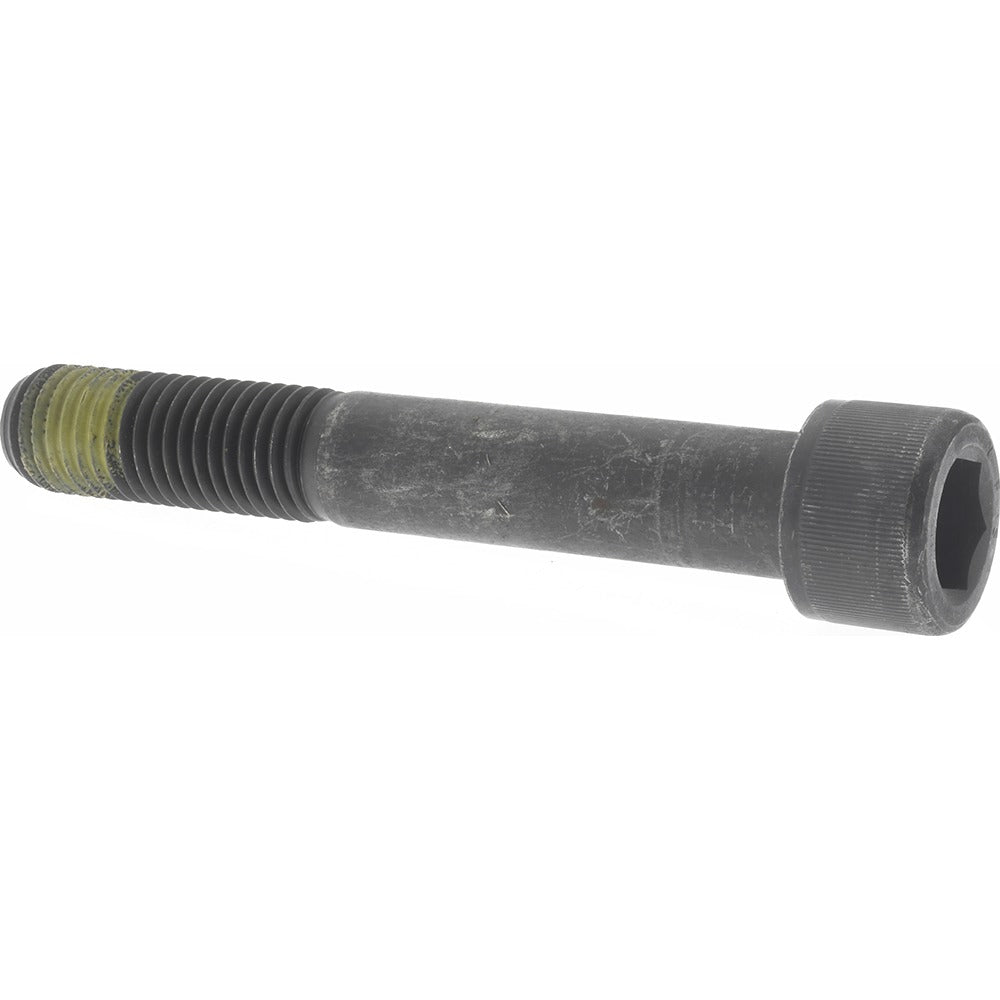

Value Collection 015483BR Hex Socket Cap Screw 3/4-10 Unc

Product Description

The VALUE COLLECTION 015483BR is a hex socket cap screw designed for high-strength fastening applications in mechanical assemblies, fixtures, and structural components. It features a 3/4-10 UNC thread size with a 5-inch length under head and is partially threaded, which allows the unthreaded shank to bear shear loads without thread engagement. The 5/8-inch hex drive socket requires a standard hex key or Allen driver. Made from alloy steel with a black oxide finish, this fastener delivers solid corrosion resistance and is suited for ferrous metal assemblies where a low-profile socket head is needed. It is installed by licensed machinists, millwrights, and maintenance technicians across industrial and commercial settings.

This fastener is used in medium-to-heavy duty assemblies where a flush or recessed socket head is preferred over a hex bolt. Typical applications include machine frames, jigs, dies, conveyors, and structural steel connections requiring high clamp load. The partial thread configuration makes it appropriate for through-bolt applications where the grip length must span an unthreaded clearance zone. The black oxide finish reduces light reflection and provides mild surface protection in dry or lightly oiled environments.

Key Features

• 3/4-10 UNC thread for high-load fastening in standard inch-series tapped holes
• 5-inch length under head with partial threading for shear-bearing shank applications
• 5/8-inch hex socket drive compatible with standard Allen keys and socket drivers
• Alloy steel construction meets ASME/ANSI B18.3, ASTM A574, and IFI 124 standards
• Black oxide coating provides mild corrosion resistance and reduces surface glare

Compatibility

Designed as an OEM-style and replacement fastener for standard 3/4-10 UNC tapped hole applications in industrial machinery, structural assemblies, and mechanical fixtures.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using a calibrated torque wrench and a properly sized 5/8-inch hex key or bit. Ensure the mating tapped hole is clean and free of debris before installation. Do not exceed the rated torque range for the bolt grade and material being fastened. Follow applicable ASME or ASTM fastener standards for torque and preload requirements for the specific assembly.
