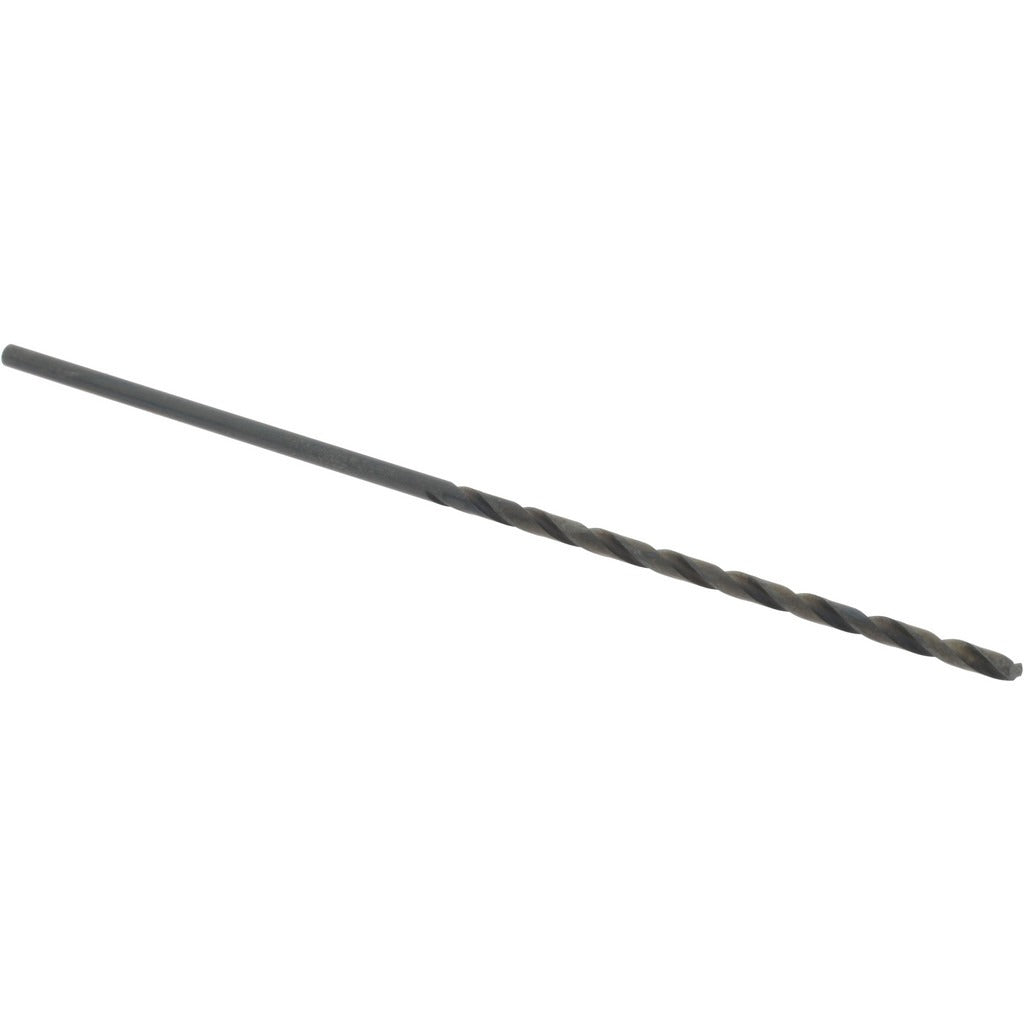

Value Collection 01408384 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01408384 is a taper length twist drill bit designed for precision drilling in metal, wood, and general-purpose materials. Built from high-speed steel (HSS) with a black oxide finish, this bit resists heat and wear during extended use. It features a 118-degree standard point angle, a right-hand spiral flute, and a straight-cylindrical shank for secure chuck engagement. The tapered web configuration and web-thinned point reduce thrust requirements and improve chip evacuation. With an overall length of 4.625 inches and a flute length of 2.5 inches, it suits applications requiring greater reach than a jobber-length bit provides. Machinists, tool-and-die techs, and maintenance professionals are the primary installers.

This drill bit is suited for general-purpose drilling operations in machine shops, fabrication facilities, and maintenance environments. The 0.1015-inch diameter corresponds to wire gauge size 38, making it a common selection for pilot holes, tap drilling, and close-tolerance work. The taper length body provides additional reach in confined or deep-hole drilling scenarios where a standard jobber bit falls short. No coolant-through capability is present, so external coolant or cutting fluid should be applied when drilling harder materials at higher speeds.

Key Features

• 0.1015-inch diameter, equivalent to wire gauge size 38
• 118-degree standard point angle for general-purpose drilling
• HSS construction with black oxide finish for heat and wear resistance
• Right-hand spiral flute with regular spiral type for efficient chip removal
• Web-thinned, tapered web configuration reduces drilling thrust
• Straight-cylindrical shank compatible with standard drill chucks
• Taper length body at 4.625 inches overall for extended reach applications

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and machine spindles accepting a straight-cylindrical shank in the 0.1015-inch diameter range.

Installation Notes

This bit is intended for use by machinists and maintenance professionals in drill presses, lathes, or hand-held power drills with appropriate chuck capacity. Secure the straight-cylindrical shank firmly in the chuck before operation to prevent slipping. Apply cutting fluid or external coolant when drilling steel or other hard materials to extend tool life and maintain dimensional accuracy. Inspect the cutting edges for wear or chipping before each use and replace the bit if point integrity is compromised.
