Value Collection 01408095 Taper Length Drill Bit Hss

Product Description

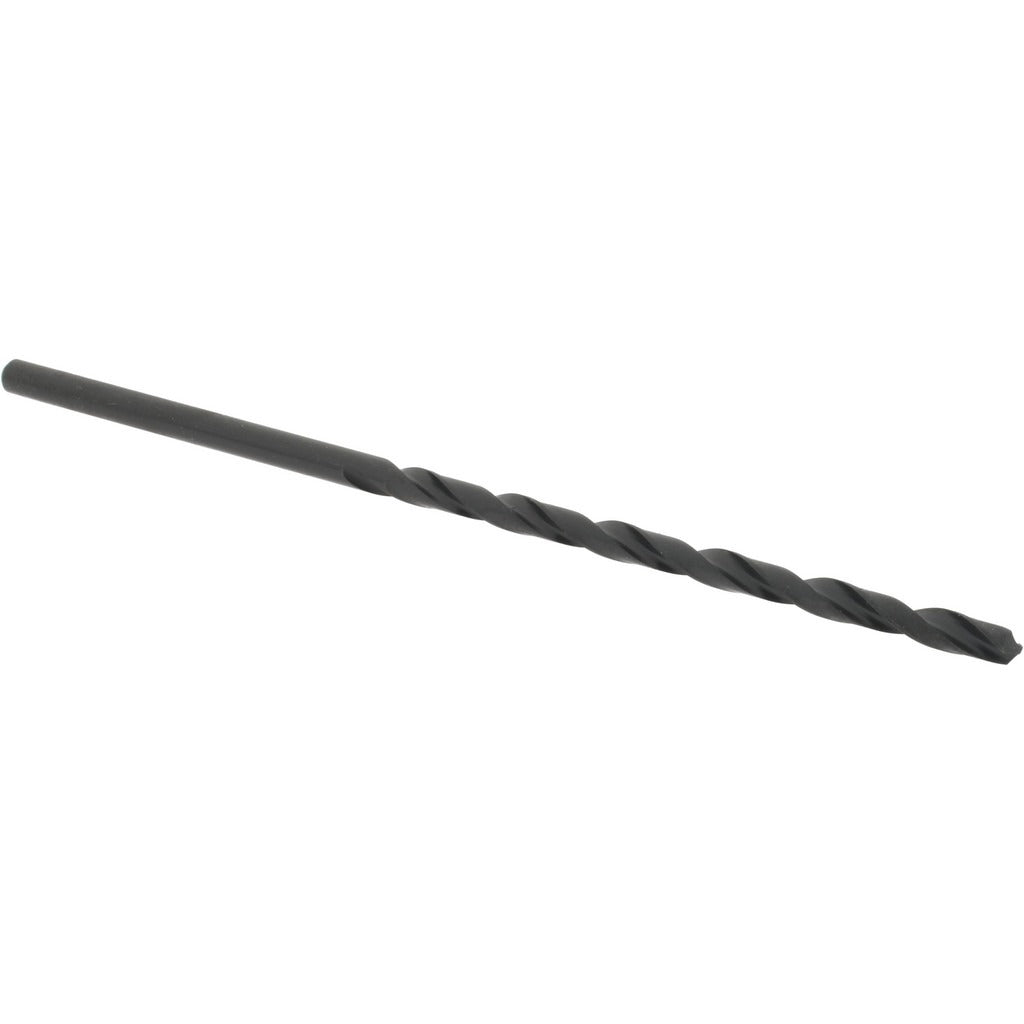

The VALUE COLLECTION 01408095 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and plastic applications. Built from high-speed steel (HSS) with a black oxide finish, this bit resists heat and corrosion during sustained use. It features a 118-degree standard point angle, a right-hand spiral flute, and a straight-cylindrical shank for secure chuck engagement. The web-thinned, tapered web construction reduces cutting resistance at the tip and improves chip evacuation. Machinists, fabricators, maintenance technicians, and tool and die professionals working with drill presses or hand drills will find this bit suited to production and repair environments.

This drill bit is sized at 0.1960 inches in diameter, corresponding to Wire Gauge Number 9. The taper length body provides extra reach compared to jobber-length bits, making it useful when drilling through thicker stock or when clearance over the workpiece is required. The 3.625-inch flute length and 6-inch overall length make it appropriate for applications where a standard-length bit falls short. It is a single-piece unit sold individually.

Key Features

• HSS construction withstands high drilling speeds and elevated cutting temperatures
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle for general-purpose use across a wide range of materials
• Right-hand spiral flute with web thinning for reduced thrust and improved chip clearing
• Taper length body extends reach beyond standard jobber-length drill bits
• Straight-cylindrical shank fits standard 3-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit for use in standard drill presses, lathes, and hand drills equipped with a straight-shank chuck accepting bits up to the specified diameter.

Installation Notes

Secure the shank fully in the chuck before drilling and verify the bit runs true before cutting. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and maintain hole quality. Wear eye protection and ensure the workpiece is properly clamped or fixtured before operation. Follow applicable workplace safety standards for rotating cutting tools.
