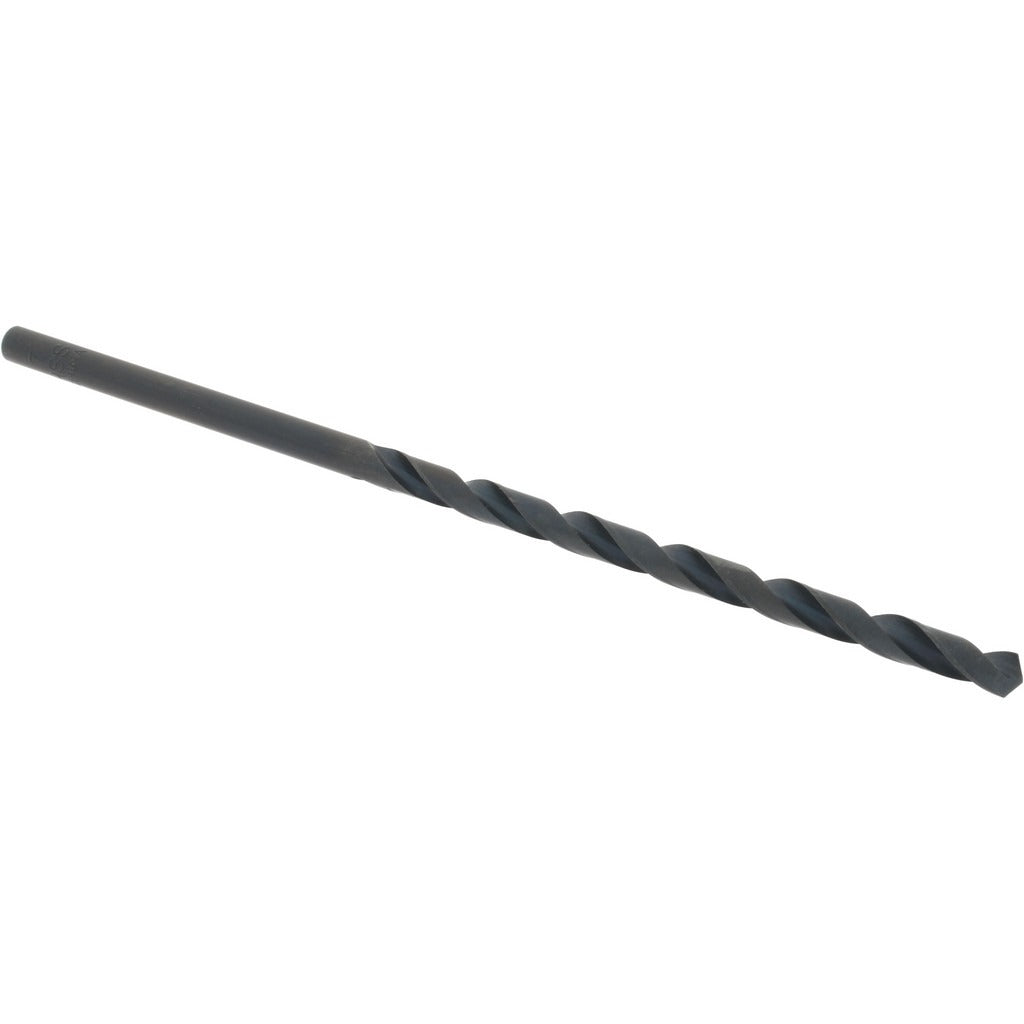

Value Collection 01408079 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01408079 is a taper length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, it resists heat and wear during standard drilling operations. The bit features a 118-degree point angle, a web-thinned tapered web configuration for easier entry, and a right-hand spiral flute for efficient chip evacuation. The straight-cylindrical shank fits standard three-jaw drill chucks. Machinists, tool-and-die workers, and maintenance technicians reach for taper length bits when extra reach is needed beyond a jobber-length drill.

This bit suits residential and light industrial applications where a longer flute length is required to reach deep holes or clear material thickness that standard jobber drills cannot reach. The 3.625-inch flute length and 6-inch overall length provide the extended reach typical of taper length geometry. It is sold individually and handles common drilling tasks on a drill press, hand drill, or CNC machine in shop and field environments.

Key Features

• HSS construction provides hardness and heat resistance for general-purpose metal drilling
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle suits a wide range of common materials
• Web-thinned tapered web reduces thrust and improves penetration at entry
• Right-hand spiral flute promotes consistent chip removal during the cut
• Straight-cylindrical shank is compatible with standard drill chucks

Compatibility

Designed as a general-purpose taper length drill bit sized to wire gauge No. 7 (0.2010 inches), compatible with any standard drill chuck that accepts a straight-cylindrical shank at this diameter.

Installation Notes

Secure the shank firmly in a calibrated drill chuck before use. Always wear appropriate eye protection and secure the workpiece before drilling. Use cutting fluid when drilling ferrous metals to extend bit life and reduce heat buildup. Inspect the cutting edges for wear before each use and replace the bit if the point shows chipping or deformation.
