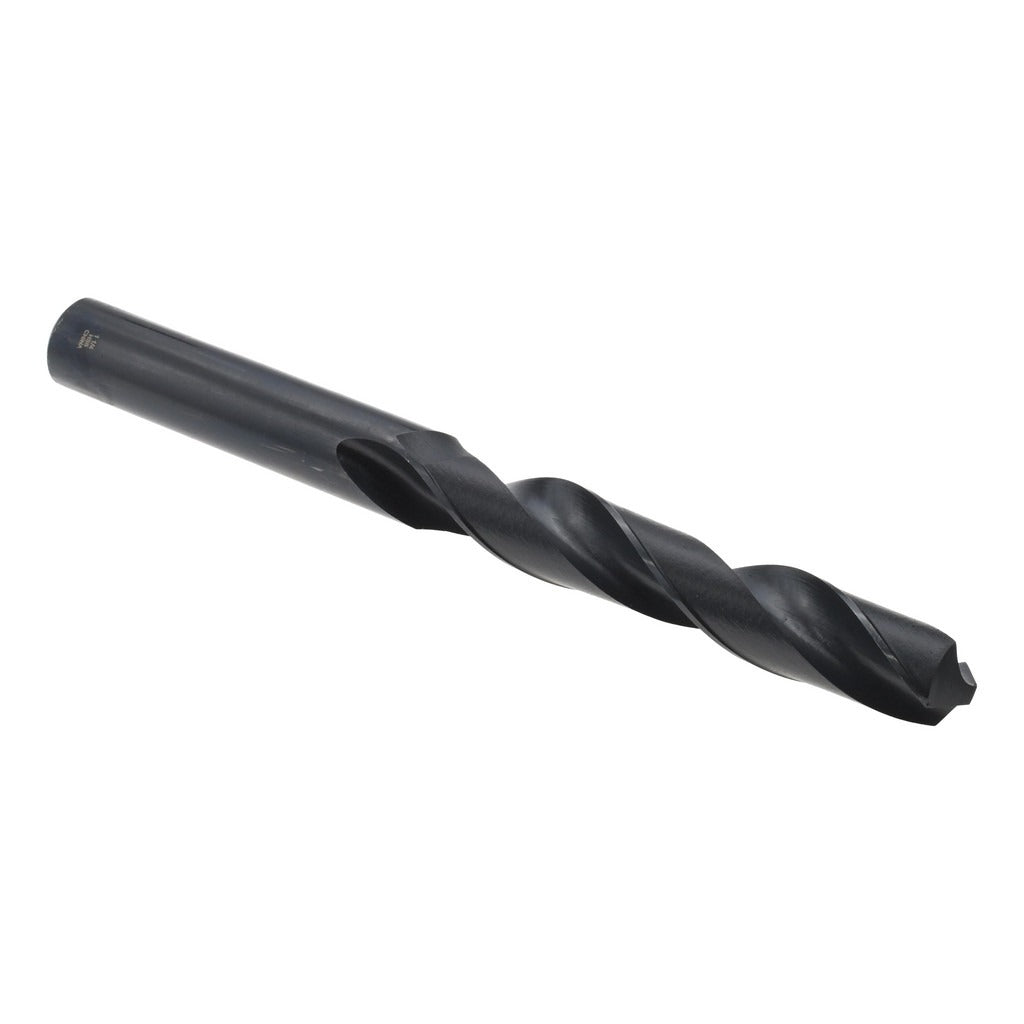

Value Collection 01401165 Taper Length Drill 1.25in Hss

Product Description

The VALUE COLLECTION 01401165 is a taper length drill bit machined from high-speed steel (HSS) with a black oxide finish. It is designed for general-purpose drilling in metalworking, fabrication, and maintenance applications where standard jobber-length bits fall short. The 1.25-inch diameter, 118-degree split point, and web-thinned tip combine to reduce walking and improve penetration in ferrous and non-ferrous materials. The straight-cylindrical shank seats securely in standard drill chucks, and the regular spiral flute evacuates chips efficiently during deep-hole operations. This bit is suited for machinists, millwrights, and maintenance technicians working on drill presses or large-capacity hand-held drilling equipment.

This taper length drill bit is intended for shop and field drilling operations that require additional reach beyond a standard jobber drill. Typical applications include structural fabrication, heavy equipment maintenance, and tool-room work where hole depths exceed the capacity of shorter bit styles. The right-hand cut spiral flute and taper-length body make it well suited for use in drill presses, radial arm drills, and milling machine setups. No coolant-through capability is present, so conventional cutting fluid application at the work surface is recommended for extended runs in hard materials.

Key Features

• 1.25-inch diameter with 118-degree standard point angle for versatile general-purpose drilling
• Web-thinned tip with tapered web configuration reduces thrust and minimizes center walking
• HSS construction provides heat resistance and durability across ferrous and non-ferrous materials
• Black oxide finish offers mild corrosion resistance and reduces friction during cutting
• Right-hand cut, regular spiral flute promotes efficient chip evacuation in deep holes
• Straight-cylindrical shank compatible with standard drill chucks and collet holders

Compatibility

Designed as a general-purpose taper length drill bit compatible with any drill press, radial arm drill, or milling machine equipped with a chuck or collet sized to accept a straight-cylindrical shank at 1.25 inches diameter.

Installation Notes

Installation and operation should be performed by qualified machinists or maintenance technicians familiar with rotating cutting tools. Always secure the workpiece with appropriate clamping before drilling, and ensure the chuck or collet is fully tightened before spindle engagement. Apply cutting fluid directly to the work surface when drilling hard or thick materials to manage heat buildup. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point geometry is compromised.
