Value Collection 01401082 Taper Length Drill 1.1250 in Hss

Product Description

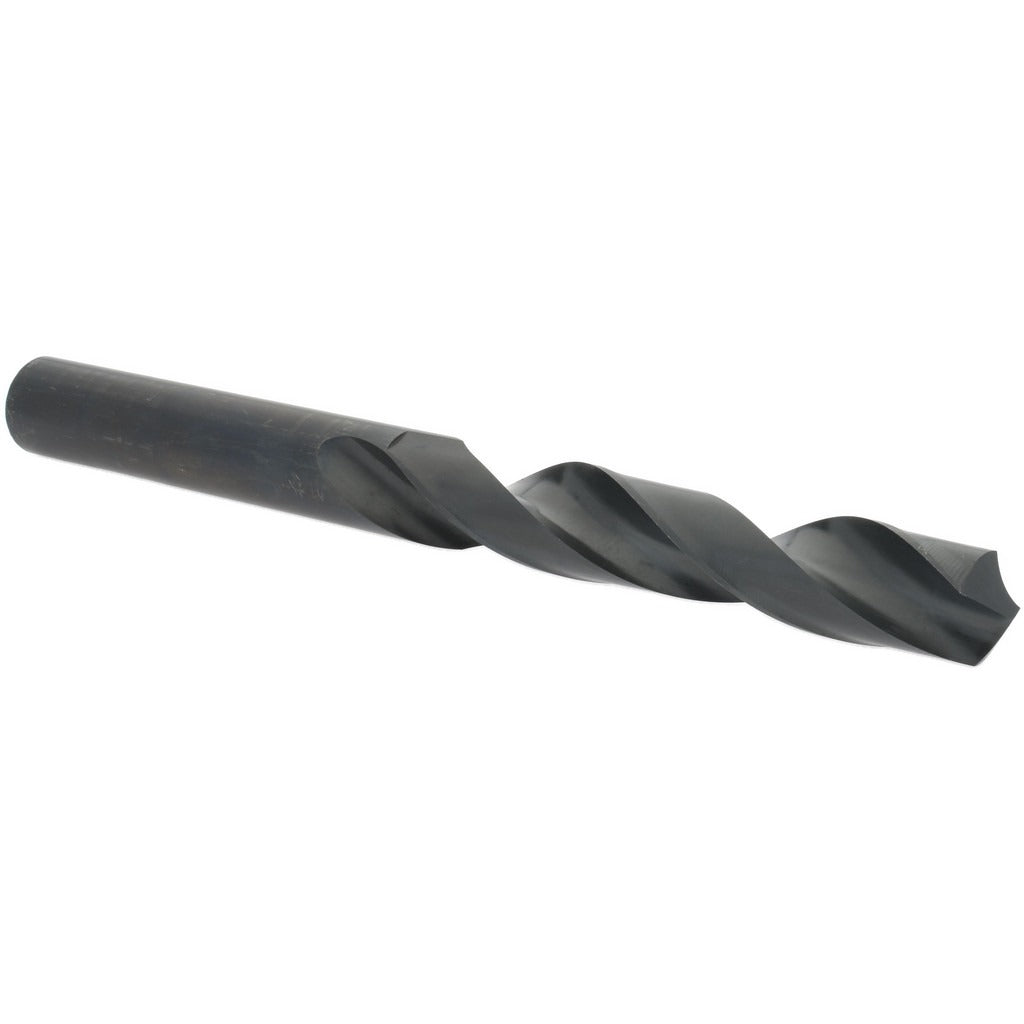

The VALUE COLLECTION 01401082 is a taper length drill bit designed for deep-hole drilling applications requiring extended reach beyond what a jobber-length bit provides. Built from high-speed steel (HSS) with a black oxide finish, this bit measures 1.1250 inches in diameter with an 11.75-inch overall length and a 7.125-inch flute length. The 118-degree standard point angle suits general-purpose work in a wide range of ferrous and non-ferrous materials. Web thinning at the tip reduces thrust and improves chip evacuation on larger-diameter bores. It is installed and used by machinists, tool-and-die workers, and trade professionals working on structural, mechanical, or fabrication drilling operations.

This drill bit is suited for production and maintenance drilling where a standard jobber-length bit cannot reach the required depth. The straight cylindrical shank seats in conventional drill chucks on drill presses, lathes, and milling machines. Its general-purpose grade makes it appropriate for carbon steel, aluminum, cast iron, brass, and similar materials. The right-hand spiral flute and tapered web configuration handle typical shop and field work where precision entry and clean chip removal are required.

Key Features

• 1.1250-inch diameter with taper length geometry for extended-reach drilling
• HSS construction provides hardness and heat resistance for general-purpose metal cutting
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle for broad material compatibility
• Web-thinned tapered web reduces cutting thrust on large-diameter entry
• Right-hand regular spiral flute promotes efficient chip clearing
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed for use in standard drill chucks accepting straight cylindrical shanks on drill presses, lathes, and milling machines. Suitable for general-purpose drilling in ferrous and non-ferrous materials.

Installation Notes

Installation and operation should be performed by a qualified machinist or experienced trade professional. Secure the straight shank firmly in the drill chuck and verify concentricity before beginning a cut. Always power down and lock out the machine before changing bits. Use appropriate cutting fluid for the workpiece material to extend tool life and improve hole quality.
