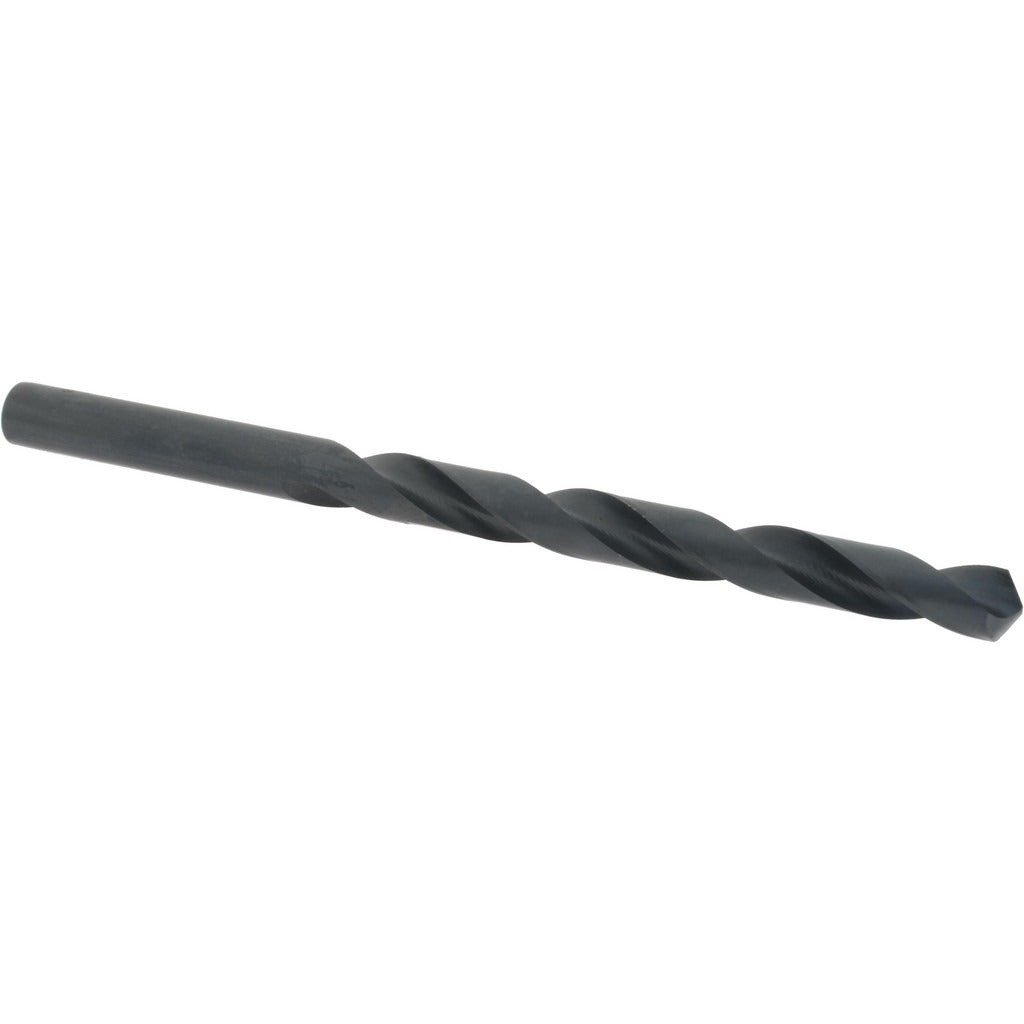

Value Collection 01400324 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01400324 is a taper length, high-speed steel (HSS) twist drill bit designed for general-purpose drilling in metal, wood, and plastics. It features a 118-degree standard point angle and a black oxide finish that reduces friction and provides light corrosion resistance during cutting operations. The bit measures 0.5000 inches in diameter with a regular spiral flute for efficient chip evacuation. A straight-cylindrical shank provides secure chuck retention. This drill is commonly used by machinists, pipefitters, electricians, and maintenance technicians who require a longer reach than a jobber-length bit without stepping up to a full aircraft-length tool.

The 01400324 is suited for production and maintenance drilling where a taper length body offers additional clearance in deeper holes or recessed work areas. The right-hand cutting direction and web-thinned, tapered web configuration reduce thrust force at the point and improve starting accuracy. With a flute length of 4-3/4 inches and an overall length of 7-3/4 inches, it reaches deeper than standard jobber bits while remaining manageable in a bench drill press or hand drill. General-purpose grade HSS construction handles a broad range of common shop and field materials.

Key Features

• 0.5000 inch diameter with 118-degree standard point angle for versatile general-purpose use
• High-speed steel (HSS) construction withstands heat generated during sustained drilling
• Black oxide finish reduces friction and provides light surface protection
• Web-thinned, tapered web lowers thrust requirements and improves point entry
• Right-hand spiral flute promotes efficient chip removal from the bore
• Taper length body (7-3/4 inches overall) offers greater reach than standard jobber-length bits

Compatibility

Designed as a general-purpose taper length drill bit compatible with any 3-jaw or keyed drill chuck accepting a straight-cylindrical shank up to 0.5000 inches in diameter, including bench drill presses, magnetic drills, and standard hand drills.

Installation Notes

Secure the straight-cylindrical shank fully in the chuck and tighten all jaws evenly before operating. Ensure the workpiece is clamped or fixtured to prevent rotation during drilling. Apply appropriate cutting fluid for metal drilling to extend bit life and maintain cut quality. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is damaged.
