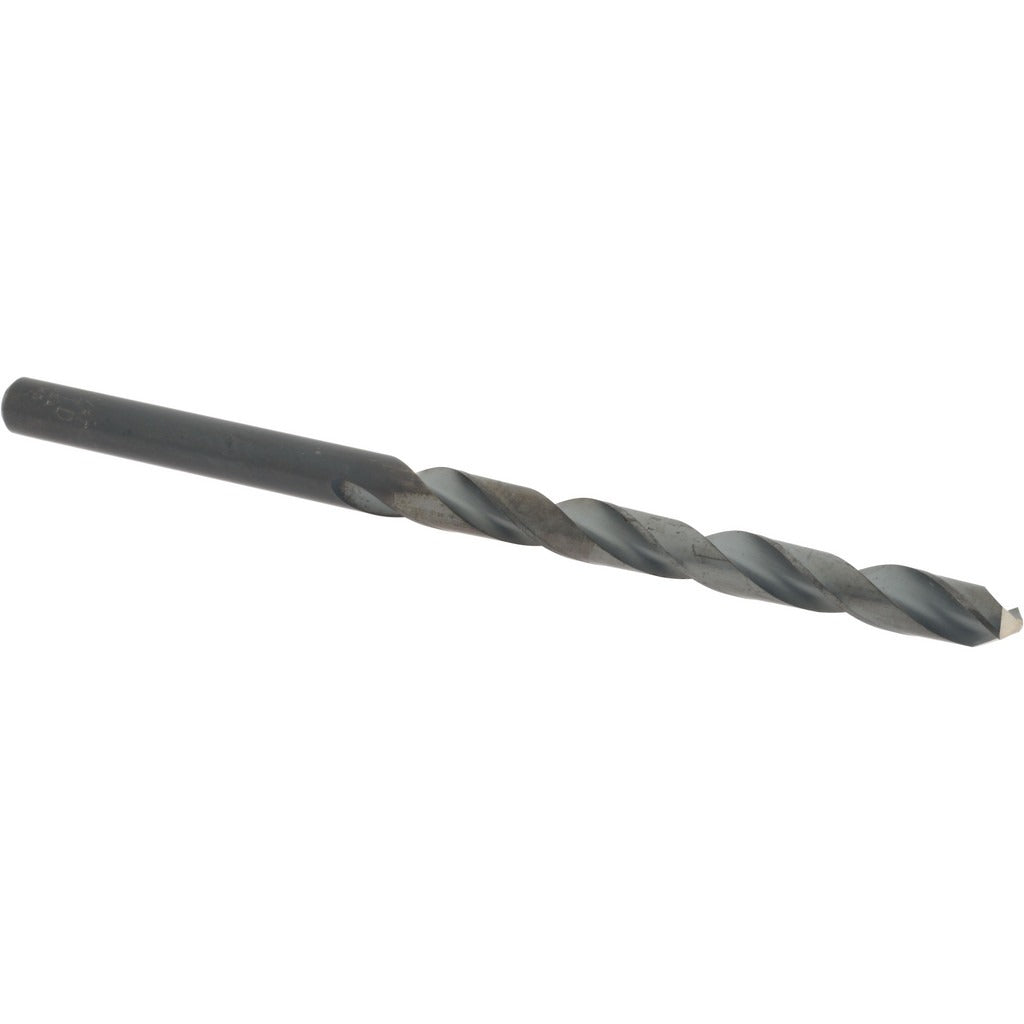

Value Collection 01400266 Taper Length Drill 0.4062 in Hss

Product Description

The VALUE COLLECTION 01400266 is a taper length drill bit designed for general-purpose drilling in metal, wood, and similar materials. Manufactured from high-speed steel (HSS) with a black oxide finish, this bit offers improved lubricity and basic corrosion resistance during use. It features a 118-degree standard point angle, a right-hand spiral flute, and a straight cylindrical shank for use in standard drill chucks. The web-thinned, tapered web configuration reduces thrust and improves chip evacuation. At 7 inches overall length, it provides extended reach compared to jobber-length bits, making it suitable for deeper hole applications.

This taper length drill bit is suited for general machining and fabrication environments where a longer flute length is needed to clear chips over extended drilling depths. The 4.375-inch flute length accommodates deeper passes in a single setup. Typical applications include structural steel work, metalworking shops, and maintenance environments where standard jobber-length bits fall short. Licensed machinists, millwrights, and maintenance technicians are the primary installers and users of this tool.

Key Features

• HSS construction provides toughness and heat resistance for metal drilling applications
• Black oxide finish improves surface lubricity and provides basic rust resistance
• 118-degree standard point angle suits general-purpose drilling in a wide range of materials
• Web-thinned tapered web reduces required thrust and improves centering
• Right-hand spiral flute design promotes efficient chip removal
• Straight cylindrical shank fits standard 3-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and milling machine setups that accept a straight cylindrical shank in 0.4062 inch diameter.

Installation Notes

Secure the shank fully in the drill chuck before operation and verify runout before drilling. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and improve surface finish. Always wear eye protection and ensure the workpiece is clamped securely before starting the drill. Inspect the cutting edges and web for wear or chipping before each use.
