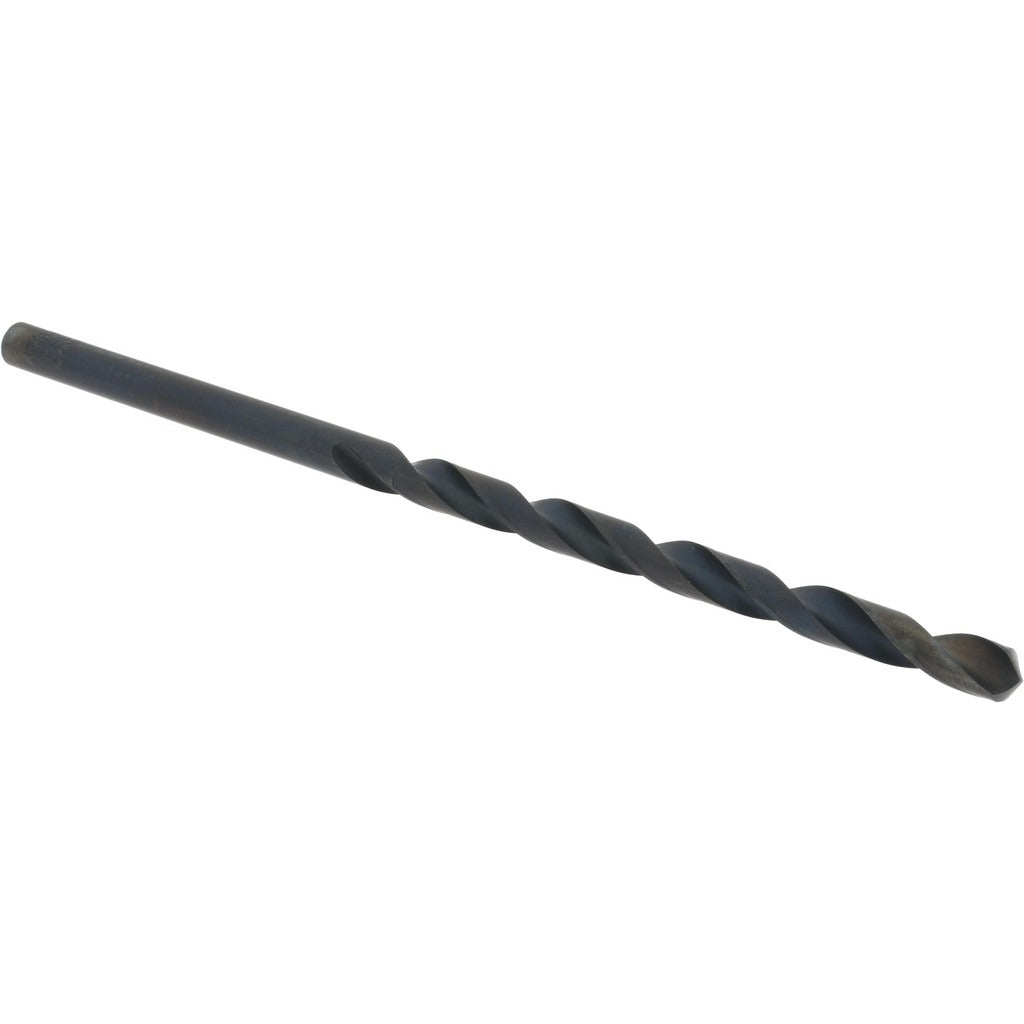

Value Collection 01400175 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01400175 is a taper length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, it resists wear and reduces friction during operation. The bit features a 118-degree standard point angle with web thinning for easier penetration and reduced thrust. At 6.25 inches overall length with a 3.875-inch flute length, it reaches deeper holes than a jobber-length bit without requiring an extended-length tool. The straight-cylindrical shank seats securely in standard drill chucks. Machinists, tool-and-die workers, and maintenance technicians are the primary users of this style of drill.

This drill bit is suited for production and maintenance drilling where extra reach is needed in a single-pass operation. The taper length design bridges the gap between jobber and extended-length bits, making it practical for through-holes in medium-thickness stock. The right-hand spiral flute evacuates chips effectively in ferrous and non-ferrous materials. The black oxide finish provides a light level of corrosion resistance during storage and handling. General-purpose grade makes this appropriate for a wide range of shop and field drilling tasks.

Key Features

• HSS construction provides hardness and heat resistance for drilling steel and other metals
• 118-degree standard point angle with web thinning reduces entry force and improves centering
• Black oxide finish minimizes surface friction and offers light corrosion protection
• Taper length body delivers additional reach compared to standard jobber bits
• Right-hand regular spiral flute promotes efficient chip evacuation
• Straight-cylindrical shank fits standard 3-jaw drill chucks and collet holders

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and collet systems accepting a straight-cylindrical shank at 0.2656 inch (17/64 inch) diameter.

Installation Notes

Install this bit into a properly sized drill chuck and tighten securely before operation. Ensure the workpiece is clamped or fixtured to prevent movement during drilling. Use appropriate cutting fluid when drilling hardened or stainless steel to extend tool life. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is damaged.
