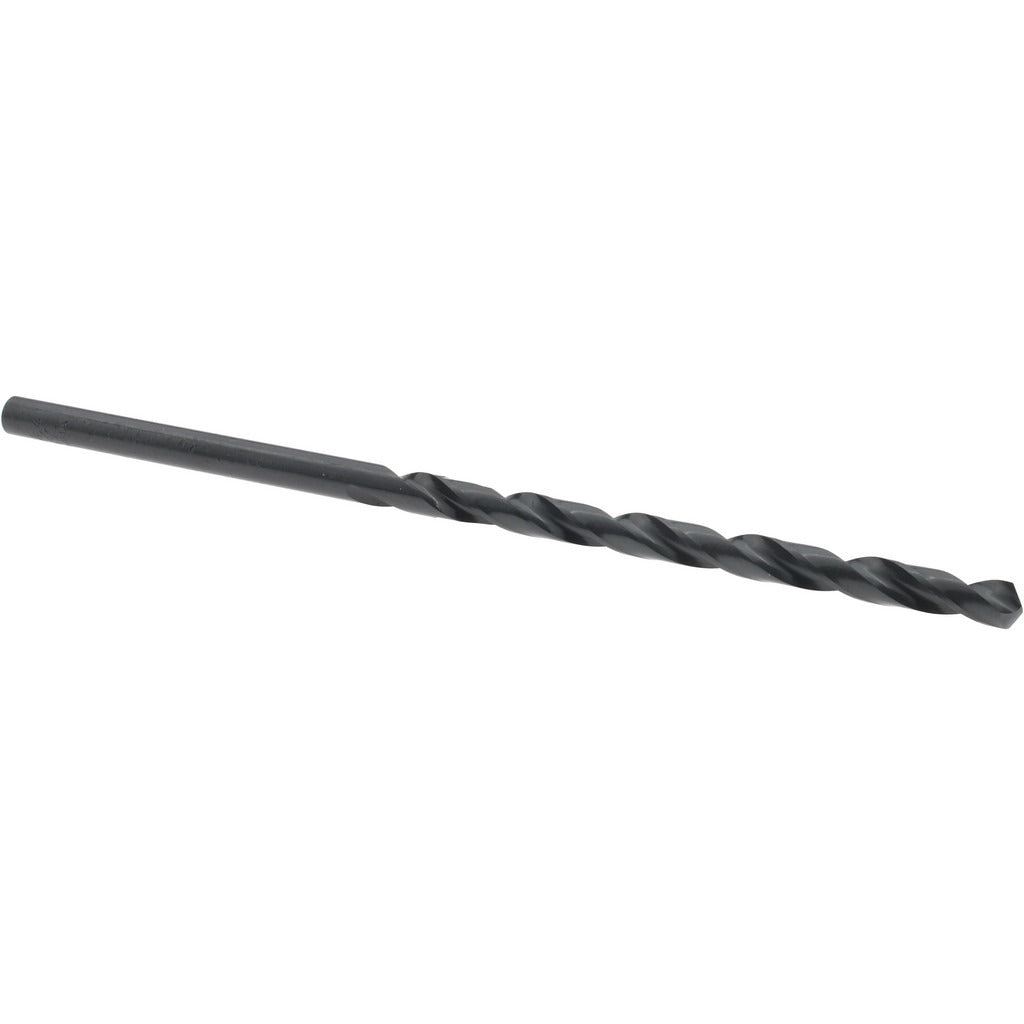

Value Collection 01400159 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01400159 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from high-speed steel (HSS) with a black oxide finish, it resists heat and minor corrosion during extended use. The bit measures 0.2344 inches (15/64 inch) in diameter with an overall length of 6.125 inches, making it longer than jobber-length bits for reaching into deeper holes or recessed features. A 118-degree standard point angle suits a wide range of common materials. The straight-cylindrical shank fits standard drill chucks without adapters. Machinists, maintenance technicians, and fabricators use this bit in drill presses and hand drills alike.

This bit is suited for general-purpose production and maintenance drilling in light to medium materials including mild steel, aluminum, plastics, and wood. The taper length body provides added reach compared to standard jobber bits while maintaining rigidity. The right-hand spiral flute with web-thinned, tapered web configuration improves chip evacuation and reduces thrust during entry. It fits standard 3-jaw chucks on bench drill presses, floor drill presses, and handheld power drills used in manufacturing, fabrication, and field maintenance settings.

Key Features

• 0.2344 inch (15/64 inch) diameter with taper length body for extended reach drilling
• HSS construction handles heat generated in metal drilling applications
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle for general-purpose use across common materials
• Web-thinned, tapered web configuration reduces thrust and improves chip flow
• Right-hand spiral flute with straight-cylindrical shank fits standard drill chucks

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard 3-jaw drill chucks accepting straight-cylindrical shanks in drill presses and handheld power drills.

Installation Notes

Install into a properly rated drill chuck and tighten securely before use. Verify spindle speed is appropriate for the material and bit diameter before starting the cut. Use cutting fluid when drilling ferrous metals to extend bit life and improve hole quality. Wear appropriate eye protection per shop safety standards whenever drilling operations are performed.
