Value Collection 01400100 Taper Length Drill Bit Hss

Product Description

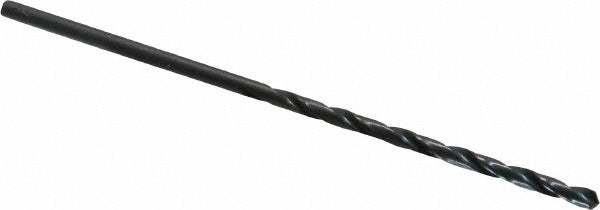

The VALUE COLLECTION 01400100 is a taper length drill bit designed for general-purpose drilling in metal, wood, and similar materials. Manufactured from high-speed steel (HSS) with a black oxide finish, this bit provides corrosion resistance and reduced friction during operation. It measures 0.1562 inches (5/32 inch) in diameter with a standard 118-degree split point and a 3.0000-inch spiral flute length. The straight-cylindrical shank allows it to seat securely in standard drill chucks. The web-thinned, tapered web configuration reduces thrust requirements and improves chip evacuation. Machinists, tool-and-die shops, and maintenance technicians are the typical users of this type of bit.

This taper length drill bit is suited for production and maintenance drilling where a longer flute length than a jobber-length bit is needed without the full reach of a screw machine or extra-length design. The right-hand cut spiral flute handles standard CNC machining centers, drill presses, and hand-held electric drills. General-purpose grade HSS construction makes it a practical choice for mild steel, aluminum, plastics, and similar workpiece materials across light manufacturing and maintenance environments.

Key Features

• 0.1562 inch (5/32 inch) diameter with 118-degree standard drill point
• High-speed steel (HSS) construction for durability across general-purpose materials
• Black oxide finish reduces friction and provides mild corrosion resistance
• 3.0000-inch spiral flute length for improved chip clearance in deeper holes
• Web-thinned tapered web lowers cutting thrust and entry resistance
• Right-hand cut with straight-cylindrical shank for compatibility with standard chucks

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks accepting a straight-cylindrical shank in the 0.1562 inch diameter range.

Installation Notes

Installation of this drill bit is performed by machinists or maintenance technicians using a drill press, milling machine, or hand-held drill with an appropriate chuck. Secure the straight-cylindrical shank fully in the chuck before operation and verify the workpiece is properly clamped or fixtured. Inspect the cutting edges for wear or damage before use and replace if the point shows chipping or dullness. Follow applicable shop safety practices including eye protection and appropriate spindle speeds for the workpiece material.
