Value Collection 01400076 Taper Length Drill 0.1094 in Hss

Product Description

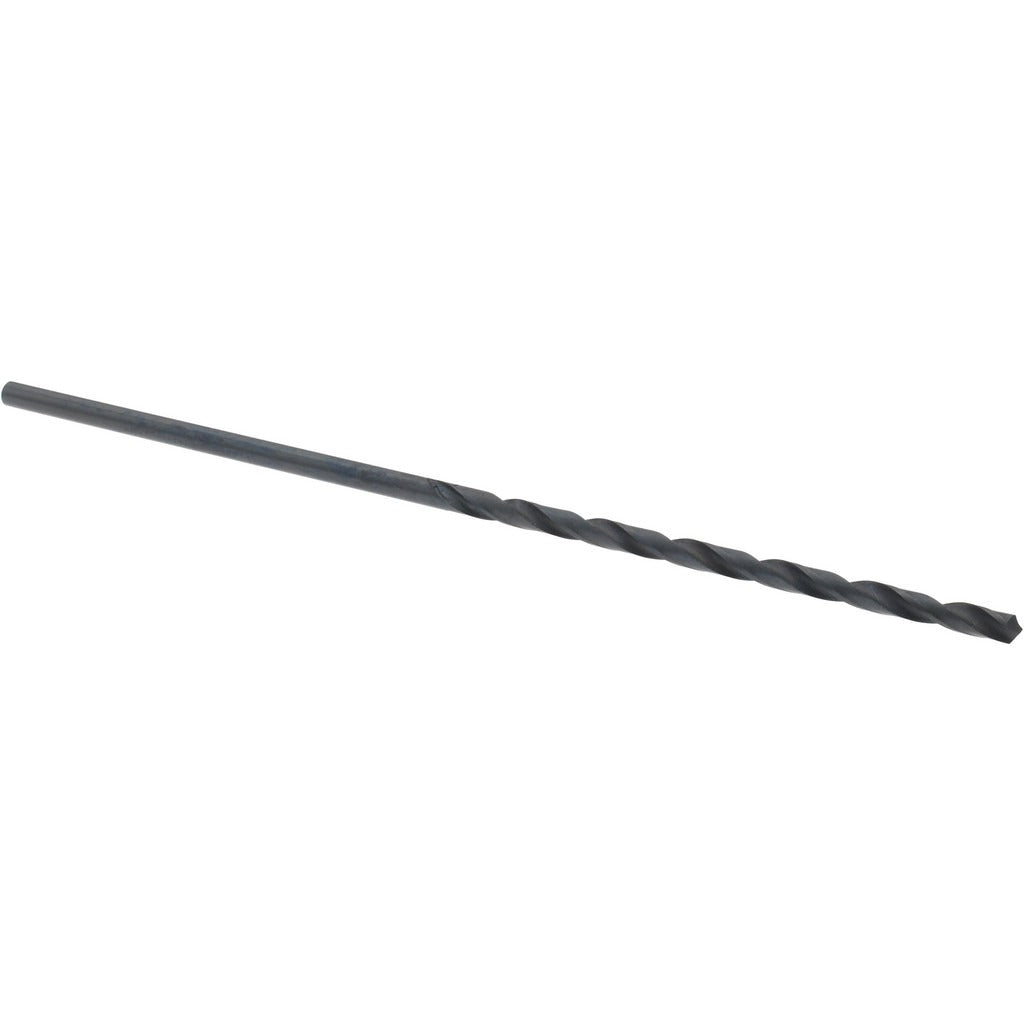

The VALUE COLLECTION 01400076 is a taper length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, it resists heat and wear during standard drilling operations. The bit measures 0.1094 inches (7/64 inch) in diameter with a 118-degree standard point angle, a 2.5-inch spiral flute length, and an overall length of 4.625 inches. The web-thinned, tapered web construction reduces thrust and improves chip clearance. Machinists, maintenance technicians, and trade professionals install this bit in hand drills, drill presses, and CNC equipment for production and repair work.

This drill bit suits residential and light commercial applications where a longer reach than a jobber-length bit is needed. The taper length profile provides added rigidity while allowing access to deeper hole depths. The straight cylindrical shank fits standard drill chucks across a wide range of hand-held and stationary drilling equipment. General-purpose grade designation makes it appropriate for everyday use in fabrication shops, maintenance environments, and field service work.

Key Features

• HSS construction provides durability and heat resistance during metal drilling
• Black oxide finish reduces friction and offers mild corrosion protection
• 118-degree standard point angle suits a broad range of common materials
• Web-thinned tapered web lowers drilling thrust and improves chip evacuation
• Right-hand spiral flute with regular helix for consistent chip removal
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks accepting a straight cylindrical shank in 0.1094 inch diameter.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard drill chuck equipment. Secure the straight shank firmly in the chuck before operation and verify chuck jaw engagement across the full shank contact area. Use appropriate cutting fluid when drilling ferrous metals to extend tool life and improve hole quality. Inspect the cutting edges for wear before each use and replace the bit if chipping or dullness is observed.
