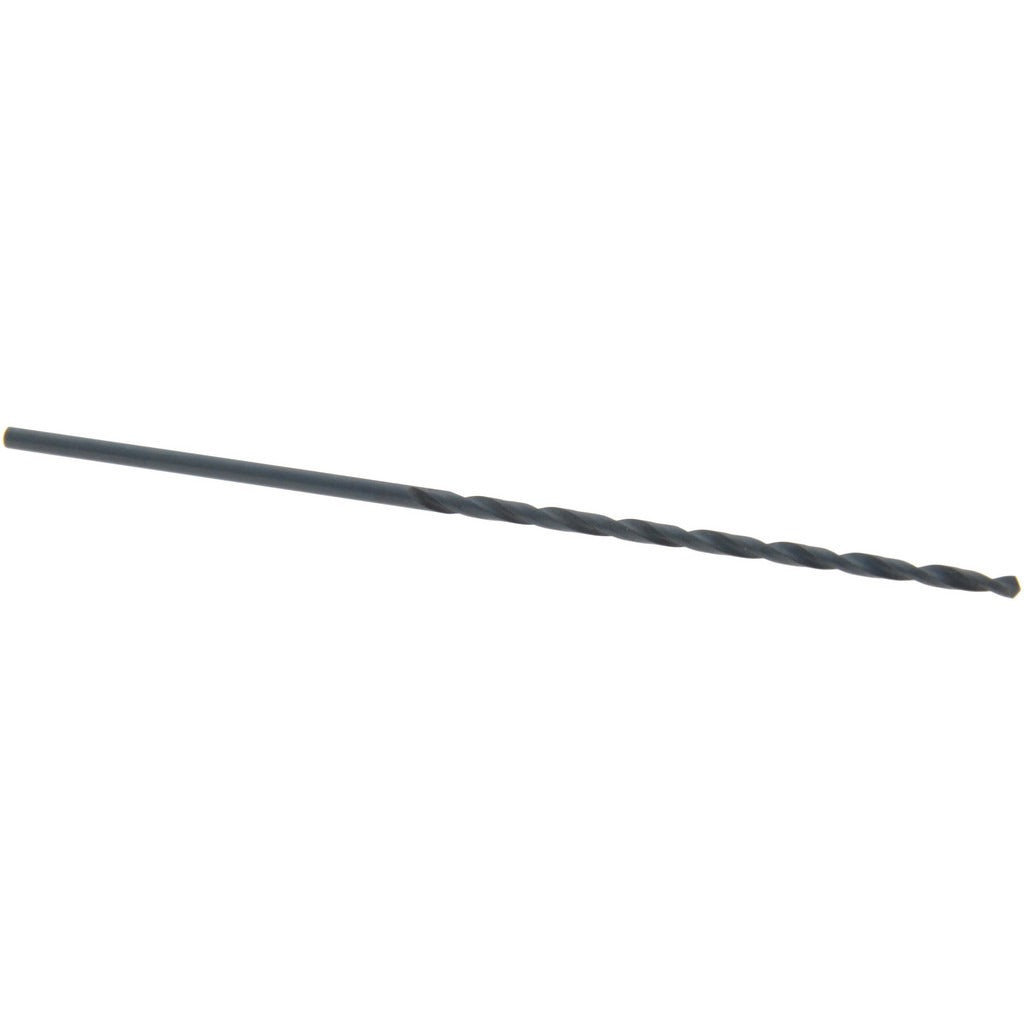

Value Collection 01400043 Taper Length Drill 1/16 in Hss

Product Description

The VALUE COLLECTION 01400043 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and plastic. Ground from high-speed steel (HSS) with a black oxide finish, it measures 0.0625 inches (1/16 inch) in diameter and carries a standard 118-degree split point angle. The overall length is 3 inches, with a 1.75-inch spiral flute length that provides additional reach compared to a jobber-length bit. The straight-cylindrical shank seats securely in standard drill chucks. Right-hand cut geometry with a regular spiral flute evacuates chips efficiently during through-hole and blind-hole operations.

This bit is suited for maintenance, fabrication, and light production drilling tasks across HVAC, electrical, plumbing, and general mechanical trades. The 1/16-inch diameter is commonly used for pilot holes, sheet metal perforation, and small-diameter through-holes in light-gauge steel, aluminum, copper, and thermoplastics. The taper length body gives extra clearance when drilling in recessed or hard-to-reach locations where a standard jobber bit is too short. Web-thinned construction reduces feed force at the cutting tip, which is useful when working with thin-wall tubing or sheet stock.

Key Features

• HSS construction provides hardness and heat resistance for drilling steel, aluminum, and non-ferrous metals
• Black oxide finish reduces friction and offers light corrosion resistance during storage and use
• 118-degree standard point angle suits general-purpose drilling across a wide range of materials
• Taper length body at 3 inches overall extends reach beyond standard jobber-length bits of the same diameter
• Web-thinned, tapered web configuration lowers cutting resistance and improves chip clearance
• Right-hand spiral flute with straight-cylindrical shank fits standard 3-jaw and keyless drill chucks

Compatibility

Designed as a general-purpose taper length drill bit compatible with any standard drill chuck accepting a straight-cylindrical shank at 0.0625 inches diameter, including handheld drills, drill presses, and milling machine setups.

Installation Notes

Install and remove drill bits only when the drill or drill press is fully powered down and the chuck is stationary. Secure the shank fully in the chuck jaws and tighten before use to prevent slippage. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and improve hole quality. Always wear eye protection and secure the workpiece before drilling.
