Value Collection 01396605 Taper Length Drill Bit Hss

Product Description

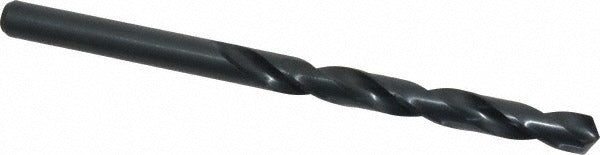

The VALUE COLLECTION 01396605 is a taper length, high-speed steel (HSS) drill bit designed for general-purpose metal drilling applications. At 0.5512 inches (14 mm) in diameter with a 118-degree standard point angle, it handles a wide range of ferrous and non-ferrous materials with consistent entry and chip evacuation. The black oxide finish provides mild corrosion resistance and reduces friction at the cutting edge. A web-thinned, tapered web construction reduces thrust force required at the start of the cut, making it easier to break through material without excessive pressure.

This drill bit is suited for machine shop, maintenance, and fabrication environments where a longer flute length is needed to reach deeper holes than a jobber-length bit allows. The taper length body extends the usable depth while the straight-cylindrical shank seats securely in standard drill chucks and toolholders. Right-hand spiral flutes clear chips efficiently during through-hole and blind-hole drilling. General-purpose HSS construction makes it a practical choice for tradespeople working with mild steel, aluminum, copper, and similar materials.

Key Features

• 0.5512 inch (14 mm) diameter with 118-degree standard point for clean entry on general materials
• HSS construction with black oxide finish for friction reduction and mild corrosion resistance
• Taper length body with 140 mm (approximately 5.51 inches) flute length for deeper reach than standard jobber bits
• Web-thinned, tapered web reduces thrust and starting resistance
• Right-hand cut with regular spiral flutes for efficient chip removal
• Straight-cylindrical shank fits standard 3-jaw drill chucks and machine toolholders

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and toolholders accepting a straight-cylindrical shank at 0.5512 inch (14 mm) diameter.

Installation Notes

Installation and operation should be performed by a qualified machinist or tradesperson familiar with drilling equipment and safe material-removal practices. Secure the workpiece firmly before drilling and ensure the shank is fully seated and clamped in the chuck before starting the machine. Appropriate cutting fluid or coolant is recommended for extended use in ferrous metals to preserve tool life, even though this bit does not support through-tool coolant delivery. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point shows damage.
