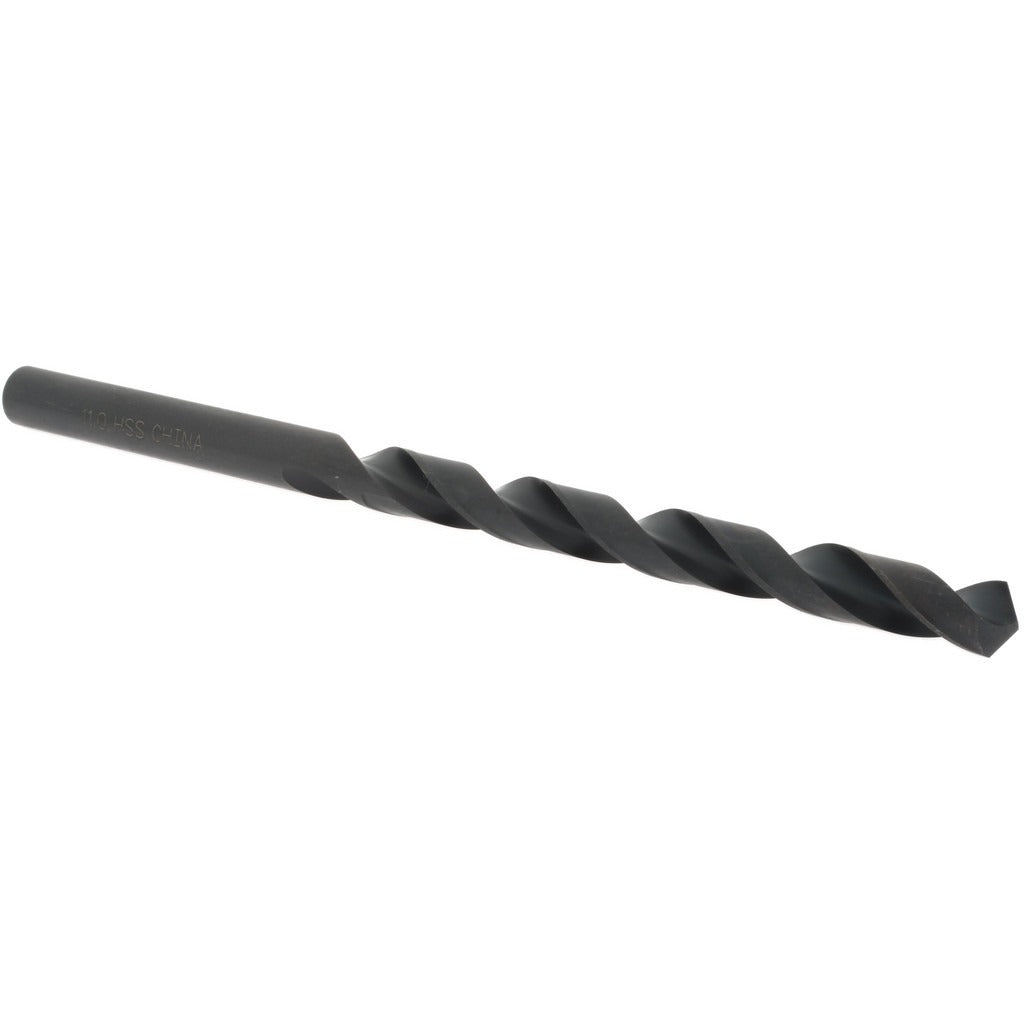

Value Collection 01395102 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01395102 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and plastic. Manufactured from high-speed steel (HSS) with a black oxide finish, it provides moderate lubricity and corrosion resistance during cutting operations. The bit measures 0.4331 inches (11.00 mm) in diameter with a 118-degree standard point angle, a regular spiral flute, and a straight-cylindrical shank for use in standard drill chucks. Web thinning reduces thrust force at the tip and improves chip evacuation. Machinists, tool-and-die workers, and maintenance technicians install this bit in drill presses, lathes, and hand-held power drills.

This drill bit is suited for production and maintenance drilling in job shops, fabrication facilities, and industrial MRO environments. The taper length body is longer than a jobber-length bit, allowing it to reach deeper hole depths without extension tooling. The right-hand spiral flute and standard point geometry make it appropriate for through-holes and blind holes in mild steel, aluminum, cast iron, and similar materials. It is sold individually and is a direct fit for any drill press or portable drill accepting a straight-cylindrical shank.

Key Features

• HSS construction provides hardness and heat resistance for metal drilling applications
• Black oxide finish reduces friction and provides mild corrosion protection
• 118-degree standard point angle suits general-purpose drilling in a wide range of materials
• Web-thinned tip lowers thrust requirements and improves chip clearing
• Taper length body extends reach beyond standard jobber-length bits without additional tooling
• Straight-cylindrical shank fits standard three-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit compatible with any drill press, lathe tailstock, or portable power drill equipped with a standard three-jaw chuck accepting a straight-cylindrical shank.

Installation Notes

A licensed machinist or qualified maintenance technician should ensure the drill chuck is fully tightened and the workpiece is securely clamped before beginning any drilling operation. Power down the machine and bring the spindle to a complete stop before changing or inspecting drill bits. Appropriate cutting fluid is recommended when drilling ferrous metals to extend tool life and manage heat buildup. Always wear proper eye and hand protection in compliance with applicable shop safety standards.
