Value Collection 01394006 Taper Length Drill Bit Hss

Product Description

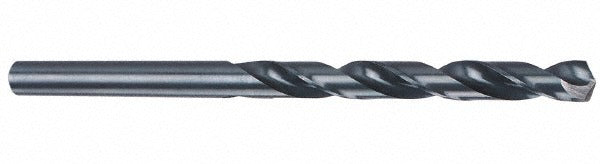

The VALUE COLLECTION 01394006 is a taper length twist drill bit designed for general-purpose metal drilling in professional and industrial settings. Built from high-speed steel (HSS) with a black oxide finish, it resists heat buildup and light corrosion during extended use. The bit measures 0.3465 inches (8.80 mm) in diameter with a standard 118-degree point angle, a regular spiral flute, and a straight-cylindrical shank for secure chuck retention. Web-thinned construction at the tip reduces thrust required to start and maintain the cut. Machinists, maintenance technicians, and fabrication tradespeople use this bit for production and repair drilling operations.

This taper length drill bit suits applications where a longer flute is needed to clear chips over deeper cuts or where standard-length bits cannot reach. The 115 mm flute length and 175 mm overall length make it appropriate for structural fabrication, HVAC bracket drilling, mechanical room installations, and general shop use. The right-hand spiral flute and standard point geometry perform reliably in mild steel, aluminum, and similar materials. No coolant-through capability means it is intended for conventional wet or dry cutting with external fluid application as needed.

Key Features

• HSS construction handles elevated cutting temperatures common in production drilling
• Black oxide finish reduces friction and provides mild corrosion resistance
• 118-degree standard point angle suits a wide range of ferrous and non-ferrous materials
• Web-thinned, tapered-web design lowers thrust and improves centering
• Taper length body provides extended reach and improved chip evacuation over jobber-length bits
• Straight-cylindrical shank fits standard 3-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill presses, milling machines, and hand-held electric drills equipped with a chuck sized to accept a straight-cylindrical shank of the appropriate diameter.

Installation Notes

This bit is installed and operated by machinists, maintenance technicians, and trade professionals using drill presses or powered hand drills. Always secure the workpiece before drilling and confirm the chuck is fully tightened around the shank. Apply cutting fluid when drilling ferrous metals to extend bit life and reduce heat. Replace the bit when point geometry is visibly worn or when the cutting edge no longer starts without walking.
