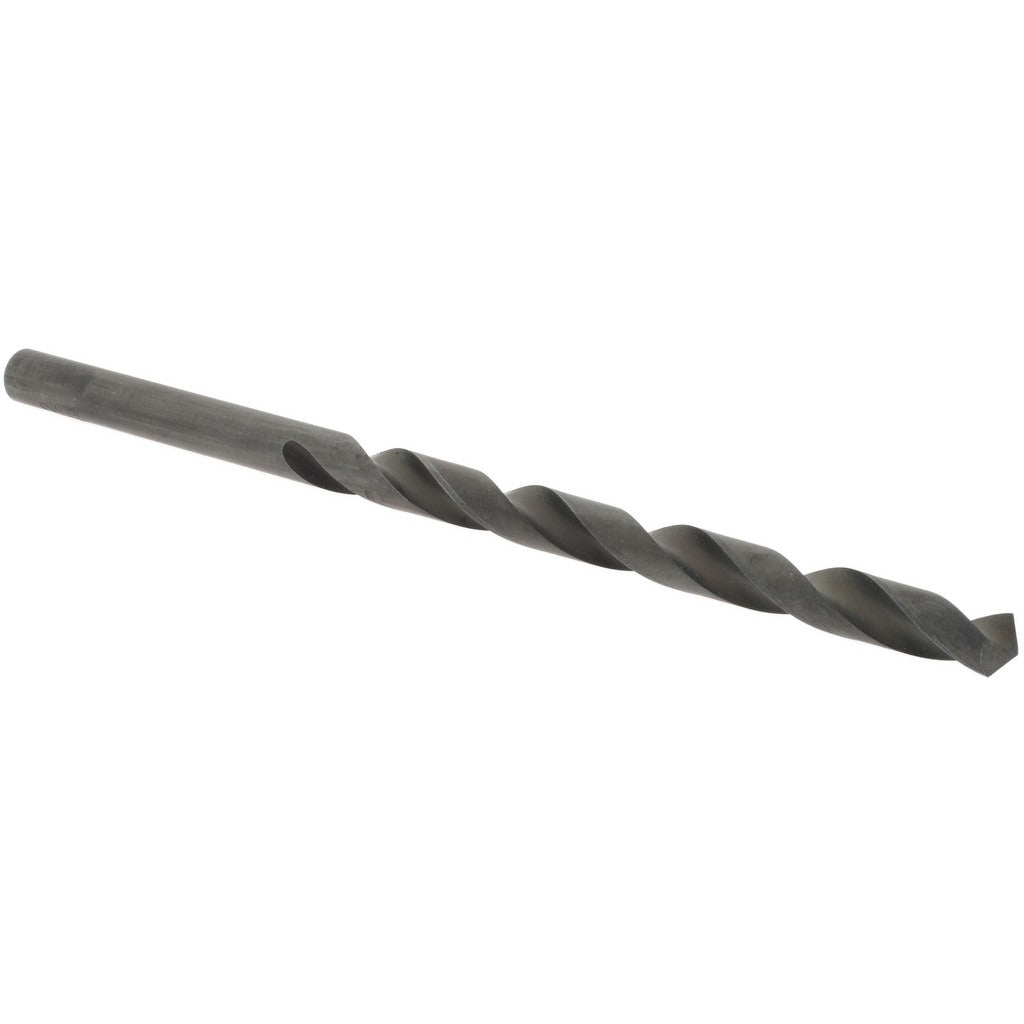

Value Collection 01393701 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01393701 is a taper length drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from high-speed steel (HSS) with a black oxide finish, it offers improved lubricity and basic corrosion resistance compared to uncoated HSS. The bit measures 0.3228 inches (8.20 mm) in diameter with a standard 118-degree point angle and a regular spiral flute. Overall length is approximately 6.5 inches (165 mm), with a flute length of roughly 4.29 inches (109 mm). The straight-cylindrical shank fits standard drill chucks. A web-thinned, tapered web design reduces thrust and improves chip clearing during drilling.

This bit is suited for production and maintenance drilling applications where a longer flute than a jobber-length bit is needed to reach deeper holes. The taper length body provides added rigidity while still extending reach beyond standard jobber dimensions. Right-hand spiral flutes pull chips up and out of the hole during operation. This bit is appropriate for use in drill presses, hand drills, and CNC drilling setups in light industrial and shop environments. It ships individually as a single unit.

Key Features

• HSS construction rated for general-purpose drilling in ferrous and non-ferrous materials
• Black oxide finish reduces friction and provides basic rust resistance
• 118-degree standard point angle for versatile material compatibility
• Web-thinned, tapered web reduces cutting resistance and improves chip flow
• Right-hand cut, regular spiral flute for efficient chip evacuation
• Straight-cylindrical shank compatible with standard 3-jaw drill chucks

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and drilling equipment that accept straight-cylindrical shanks.

Installation Notes

This bit is intended for use by machinists, toolmakers, and maintenance technicians familiar with drill press and hand-drill operation. Secure the shank fully in the chuck before drilling and verify chuck key is removed before powering the spindle. Use appropriate cutting fluid when drilling hard metals to extend bit life and prevent overheating. Wear appropriate eye protection in accordance with applicable shop safety standards.
