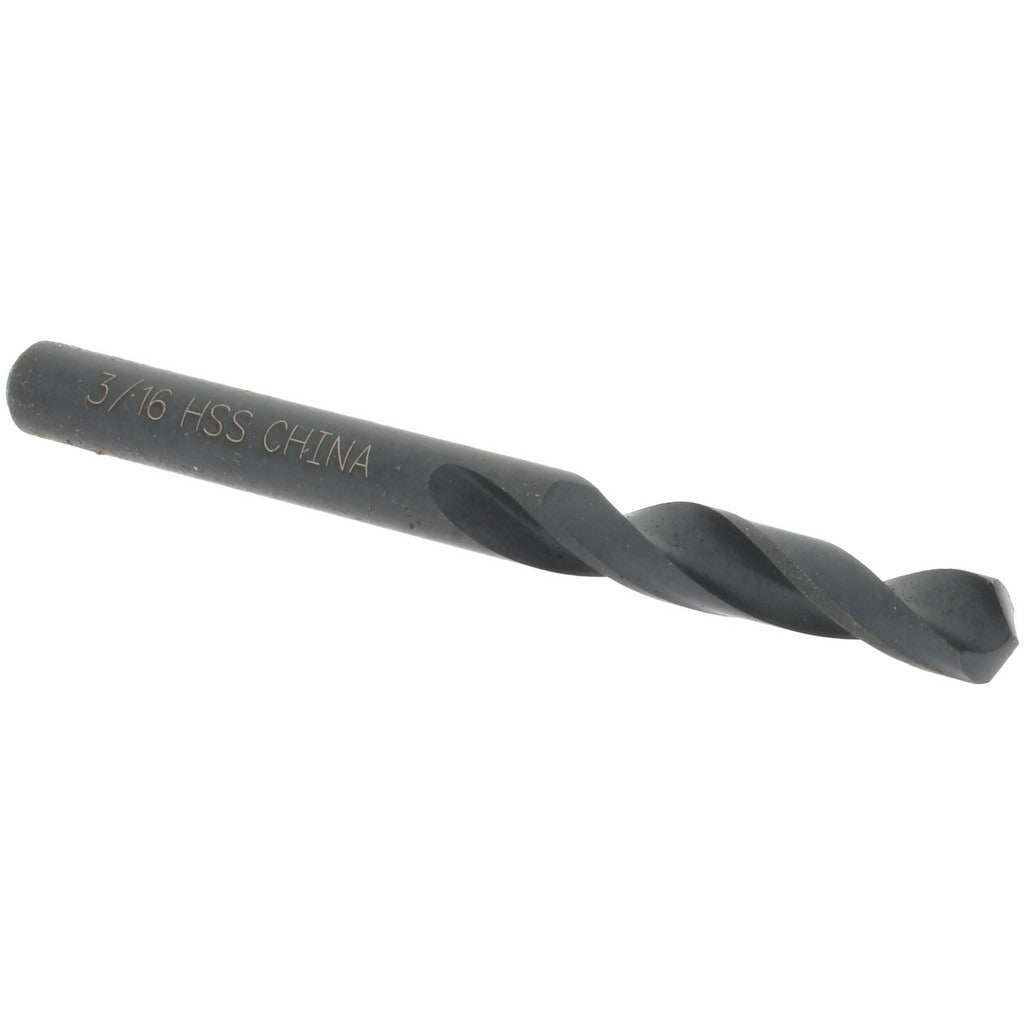

Value Collection 01350123 Screw Machine Drill Bit 3/16 in

Product Description

The VALUE COLLECTION 01350123 is a screw machine length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with an oxide finish, it offers improved lubricity and basic corrosion resistance during cutting operations. The 118-degree standard point angle is well-suited for drilling into a wide range of common materials. At 2-3/16 inches overall length, this stub-length bit provides added rigidity compared to jobber-length drills, reducing deflection in portable drill applications and drill press work. HVAC, plumbing, and electrical trades regularly use screw machine bits when drilling through sheet metal panels, junction boxes, and framing members in tight quarters.

This 3/16-inch drill bit fits standard three-jaw drill chucks via its straight cylindrical shank. Its compact overall length makes it practical for use in confined spaces common in mechanical rooms, electrical enclosures, and behind wall cavities. The two-flute regular spiral design clears chips efficiently during through-hole drilling. A web-thinned parallel web configuration reduces thrust required at entry, making hand-drilling cleaner and faster. General-purpose grade construction suits routine field and shop drilling tasks performed by electricians, plumbers, and HVAC technicians.

Key Features

• High-speed steel construction for durability across general-purpose drilling applications
• Oxide coating provides basic lubricity and surface protection during cutting
• 118-degree standard point angle suits a broad range of common materials
• Screw machine (stub) length at 2-3/16 inches overall for added rigidity and reduced deflection
• Two-flute regular spiral design promotes efficient chip evacuation
• Web-thinned parallel web reduces drilling thrust and entry resistance
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with any standard three-jaw drill chuck accepting a straight shank in the 0.1500 to 0.2000 inch diameter range.

Installation Notes

Secure the shank fully in the drill chuck before use and verify the bit runs true with no visible wobble. Power down or unplug the drill before changing bits. When drilling metal, use cutting fluid where practical to extend bit life and improve hole quality. This bit is not rated for coolant-through use.
