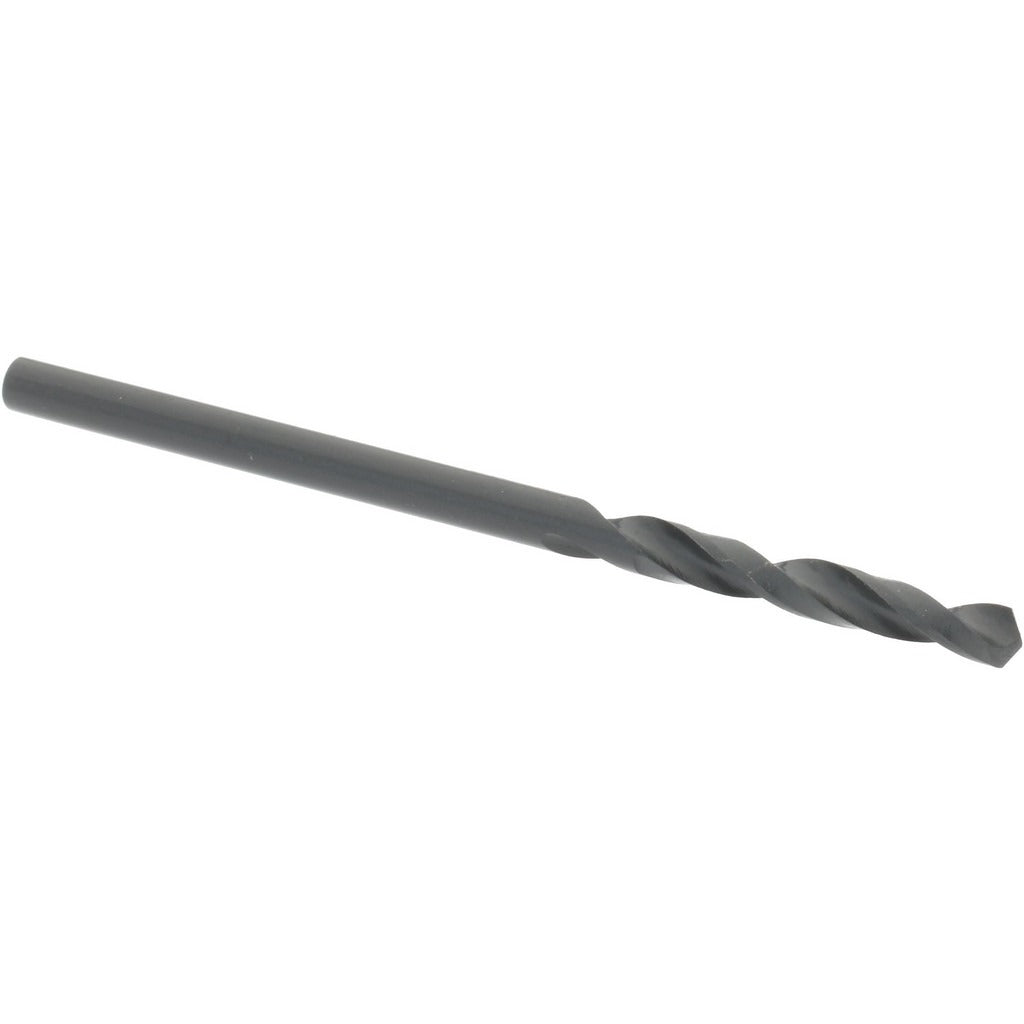

Value Collection 01350065 Screw Machine Drill Bit 3/32 in

Product Description

The VALUE COLLECTION 01350065 is a screw machine length drill bit designed for high-frequency production drilling in metal, wood, and plastic. The shortened overall length of 1.75 inches provides greater rigidity than standard jobber-length bits, reducing deflection and improving hole accuracy in close-tolerance work. Ground from high-speed steel with an oxide finish for added lubricity, this bit runs at a 3/32-inch diameter with a 118-degree standard point angle. The two-flute regular spiral geometry evacuates chips efficiently during through-hole and blind-hole applications. Licensed tradespeople and production machinists rely on this style of bit for work in drill presses, CNC lathes, and manual lathes where stub-length rigidity is critical.

This drill bit is suited for general-purpose drilling operations in light manufacturing, HVAC fabrication, electrical panel work, and plumbing rough-in tasks requiring small-diameter holes through sheet metal or light-gauge material. The straight cylindrical shank seats directly into standard drill chucks without requiring a specialized holder. The screw machine length format is particularly common in production environments where drill depth is controlled by a stop collar or machine travel limit, making it a standard item in trade toolkits where 3/32-inch clearance or pilot holes are required repeatedly.

Key Features

• 3/32-inch diameter with 0.0938-inch decimal equivalent for precision fit selection
• 118-degree standard point angle for general-purpose entry into ferrous and non-ferrous materials
• High-speed steel construction with oxide coating for reduced friction and extended service life
• Screw machine (stub) length at 1.75 inches OAL increases rigidity and reduces bit walkout
• Web-thinned parallel web configuration reduces thrust force at drill entry
• Right-hand cutting, regular spiral flute for consistent chip clearance in production use

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with any standard drill chuck accepting a straight cylindrical shank in the 3/32-inch diameter range.

Installation Notes

This bit is installed by a machinist, toolmaker, or trade professional into a keyed or keyless drill chuck. Always secure the shank fully into the chuck and verify concentricity before operation. Use appropriate cutting fluid on hard metals to extend cutting edge life and reduce heat buildup. Inspect the cutting edges for wear or chipping before each use, as a dull or damaged bit can cause oversized holes or bit breakage at small diameters.
