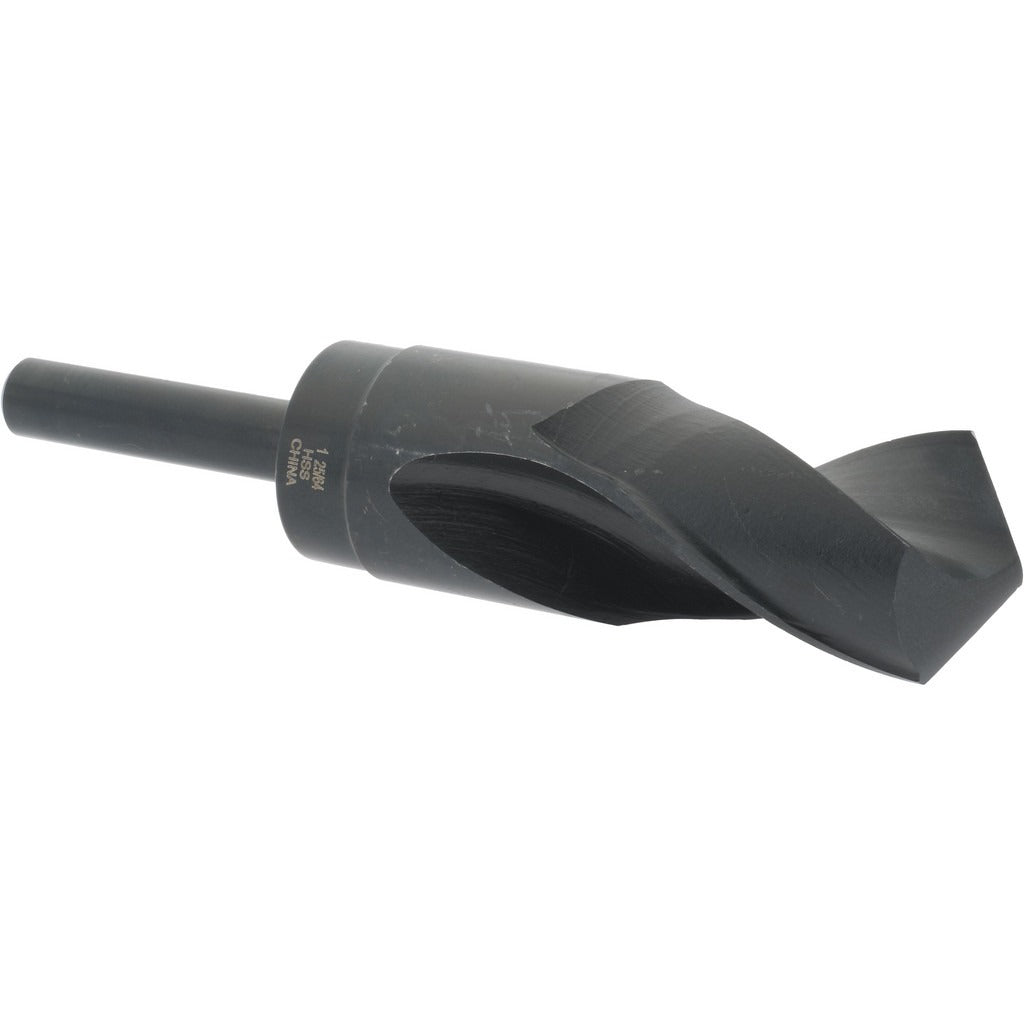

Value Collection 01341254 Reduced Shank Drill Bit

Product Description

The VALUE COLLECTION 01341254 is a reduced shank twist drill bit designed for drilling large-diameter holes using standard 1/2 inch chuck equipment. The cutting diameter measures 1-25/64 inches (1.3906 inches decimal) while the shank is turned down to 1/2 inch, allowing it to seat in drill presses and hand drills that cannot accept the full bit diameter. Made from high-speed steel with an oxide finish, it cuts in a right-hand direction with a 118-degree standard point angle. Overall length is 6 inches with a 3 inch spiral flute for chip evacuation. Machinists, millwrights, and general maintenance technicians are the typical installers.

This bit is suited for general-purpose drilling in metal, wood, and similar materials where a large-diameter bore is required but chuck capacity is limited to 1/2 inch. It is appropriate for use on drill presses, magnetic base drills, and hand-held power drills with 1/2 inch chucks. The 3 inch flute length supports a maximum drilling depth of 3 inches, making it practical for through-holes and deep blind bores in plate, structural stock, and similar workpieces encountered in fabrication and maintenance applications.

Key Features

• Reduced 1/2 inch shank allows use with standard 1/2 inch chucks despite 1-25/64 inch cutting diameter
• 118-degree standard point angle for general-purpose entry and centering
• High-speed steel construction provides durability across a range of common materials
• Oxide finish helps reduce friction and resist corrosion during cutting
• Right-hand spiral flute promotes efficient chip evacuation during drilling
• 3 inch flute length supports up to 3 inches of drilling depth

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with any drill press or power drill fitted with a 1/2 inch chuck capacity.

Installation Notes

Secure the reduced shank firmly in the chuck and verify there is no runout before beginning a cut. Always use appropriate work-holding to prevent the workpiece from spinning. Use cutting fluid or lubricant when drilling metal to extend bit life and reduce heat buildup. Wear appropriate personal protective equipment including eye protection any time the bit is in use.
