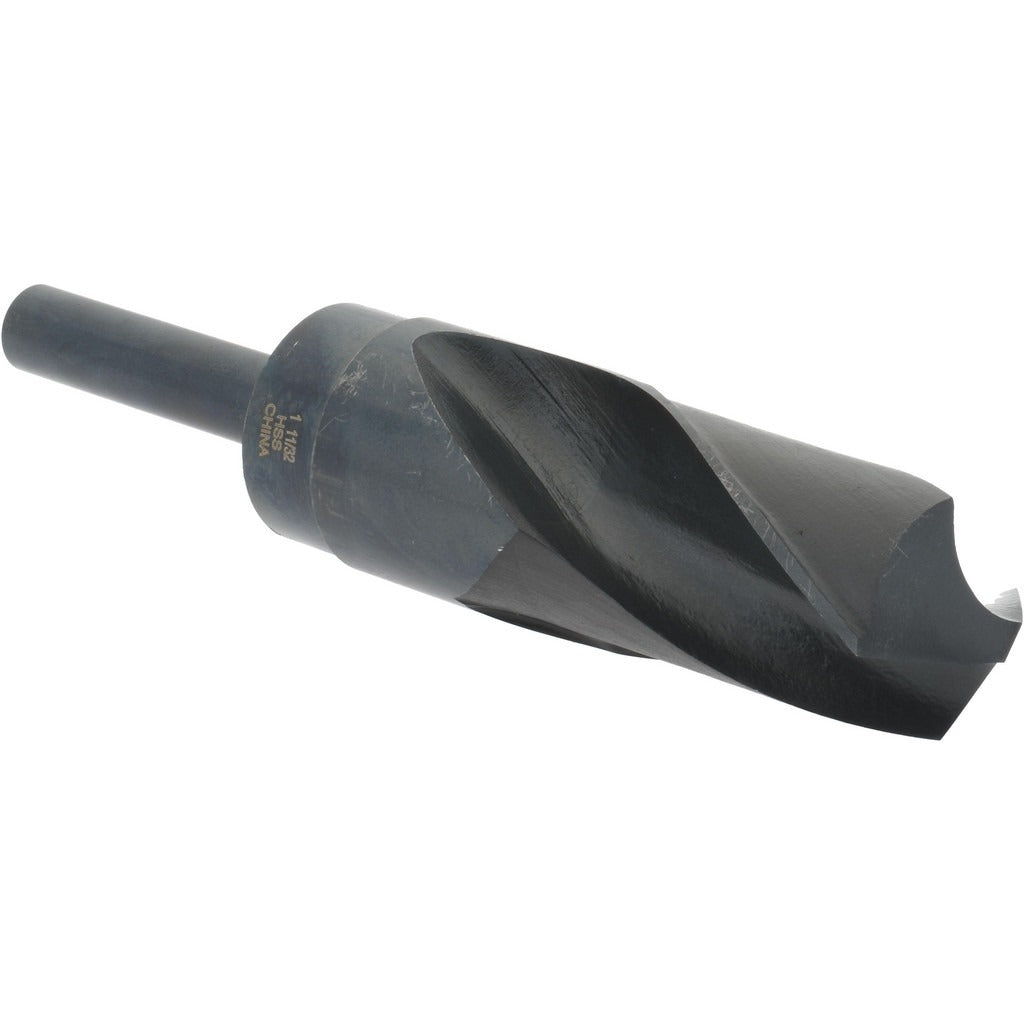

Value Collection 01341221 Reduced Shank Drill Bit Hss

Product Description

The VALUE COLLECTION 01341221 is a reduced shank twist drill bit engineered for general-purpose drilling in metal, wood, and plastics. The bit features a 1-11/32 inch cutting diameter paired with a 1/2 inch straight-cylindrical shank, allowing it to chuck into standard 1/2 inch drill chucks despite its larger bore size. Constructed from high-speed steel with an oxide finish for basic corrosion resistance, it runs a 118-degree standard point angle suited for a wide range of common materials. Licensed machinists, maintenance technicians, and skilled tradespeople reach for this bit when drilling larger-diameter holes without requiring a dedicated large-shank chuck setup.

This bit is appropriate for residential and light commercial applications where oversized holes are needed in structural members, pipe hangers, electrical enclosures, or mechanical assemblies. The reduced shank design makes it compatible with standard 1/2 inch capacity drill presses and hand drills, eliminating the need for a larger chuck. Right-hand spiral fluting evacuates chips efficiently during through-hole and blind-hole operations in general-purpose drilling scenarios.

Key Features

• 1-11/32 inch cutting diameter with a reduced 1/2 inch straight-cylindrical shank for standard chuck compatibility
• 118-degree standard point angle for general-purpose material entry without pre-drilling
• High-speed steel construction for durability across metals, wood, and plastics
• Oxide finish provides basic surface protection and reduces friction during cutting
• Right-hand spiral fluting with regular helix promotes efficient chip evacuation
• 3 inch flute length supports drilling to a maximum depth of 3 inches

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with any 1/2 inch capacity drill press or portable drill chuck accepting straight-cylindrical shanks.

Installation Notes

Installation of this bit is performed by machinists or maintenance technicians using standard drill press or hand drill equipment. Secure the 1/2 inch shank fully into the chuck and tighten with a chuck key before operation. Power down and lock out the drill press before changing bits. Use appropriate cutting fluid or coolant as required by the workpiece material, and clamp the workpiece securely to prevent movement during drilling.
