Value Collection 01341213 Reduced Shank Drill Bit Hss

Product Description

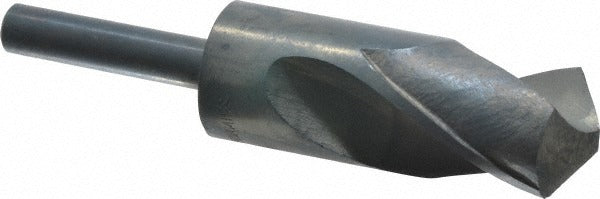

The VALUE COLLECTION 01341213 is a reduced shank twist drill bit designed for drilling large-diameter holes using standard 1/2 inch chuck equipment. The bit measures 1-21/64 inches (1.3281 inches decimal) in cutting diameter with a 1/2 inch straight-cylindrical shank that fits common drill presses and hand drills without requiring a larger chuck. Constructed from high-speed steel with an oxide finish, the 01341213 handles general-purpose drilling in ferrous and non-ferrous metals, plastics, and similar materials. The 118-degree standard point angle suits a wide range of common drilling applications. Overall length is 6 inches with a 3 inch flute length. Weight is 2 pounds.

This reduced shank drill bit is suited for machinists, maintenance technicians, and fabricators who need to produce large-diameter holes without a dedicated large-chuck machine. The 1/2 inch shank allows the bit to seat in standard drill press chucks, making large-diameter drilling accessible on common shop equipment. Right-hand spiral flutes evacuate chips efficiently during through-hole and blind-hole operations in general-purpose materials.

Key Features

• 1-21/64 inch (1.3281 inch) cutting diameter with a reduced 1/2 inch straight-cylindrical shank
• 118-degree standard point angle for general-purpose drilling
• High-speed steel construction for durability across ferrous and non-ferrous materials
• Oxide finish for corrosion resistance and reduced friction
• Right-hand cut with regular spiral flutes for effective chip evacuation
• 3 inch flute length supports a maximum drilling depth of 3 inches

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with standard 1/2 inch drill press chucks and hand drill chucks for large-diameter hole applications.

Installation Notes

Installation and use should be performed by qualified machinists or experienced tradespeople familiar with drill press or hand drill operation. Secure the workpiece firmly before drilling and confirm the chuck is fully tightened on the 1/2 inch shank before starting the spindle. Use appropriate cutting fluid or coolant for metal drilling where the machine and material permit. Inspect the cutting edges for wear or damage before each use and replace the bit if chipping or excessive dulling is observed.
