Value Collection 01341130 Reduced Shank Drill Bit Hss

Product Description

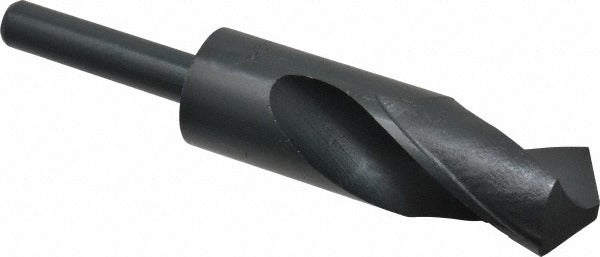

The VALUE COLLECTION 01341130 is a reduced shank drill bit designed for drilling large-diameter holes using a standard 1/2 inch chuck. The bit measures 1-13/64 inches (1.2031 inches decimal) in cutting diameter with a 1/2 inch straight-cylindrical shank, allowing it to seat in common drill presses and hand drills without requiring a larger chuck. Constructed from high-speed steel with an oxide finish, it features a 118-degree standard point angle suited for general-purpose drilling in a wide range of materials. Overall length is 6 inches with a 3 inch flute length. Right-hand cut with a regular spiral flute pattern. Trade professionals and machinists use this bit for production and maintenance drilling tasks.

This reduced shank drill bit is suited for general-purpose drilling in metal fabrication shops, maintenance facilities, and industrial service environments. The 3 inch maximum drilling depth accommodates typical through-hole and blind-hole work in mild steel, aluminum, and similar materials. The oxide finish provides a degree of lubricity and corrosion resistance during use. No coolant-through capability is present, so external cutting fluid should be applied when drilling ferrous metals to extend bit life and maintain hole quality.

Key Features

• Reduced 1/2 inch shank allows use in standard chucks despite 1-13/64 inch cutting diameter
• High-speed steel construction withstands heat generated during general-purpose metal drilling
• 118-degree standard point angle for use on a broad range of workpiece materials
• Oxide finish reduces friction and provides basic corrosion resistance
• Right-hand cut with regular spiral flutes for efficient chip evacuation
• 6 inch overall length with 3 inch flute length for controlled drilling depth

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with any drill press, magnetic drill, or hand drill equipped with a 1/2 inch or larger chuck capacity.

Installation Notes

A licensed machinist or qualified maintenance technician should secure the workpiece firmly before drilling to prevent rotation. Power down and lock out the drill press or tool before changing bits. Apply appropriate cutting fluid when drilling ferrous metals to manage heat and extend bit life. Follow applicable shop safety standards and wear appropriate personal protective equipment during operation.
