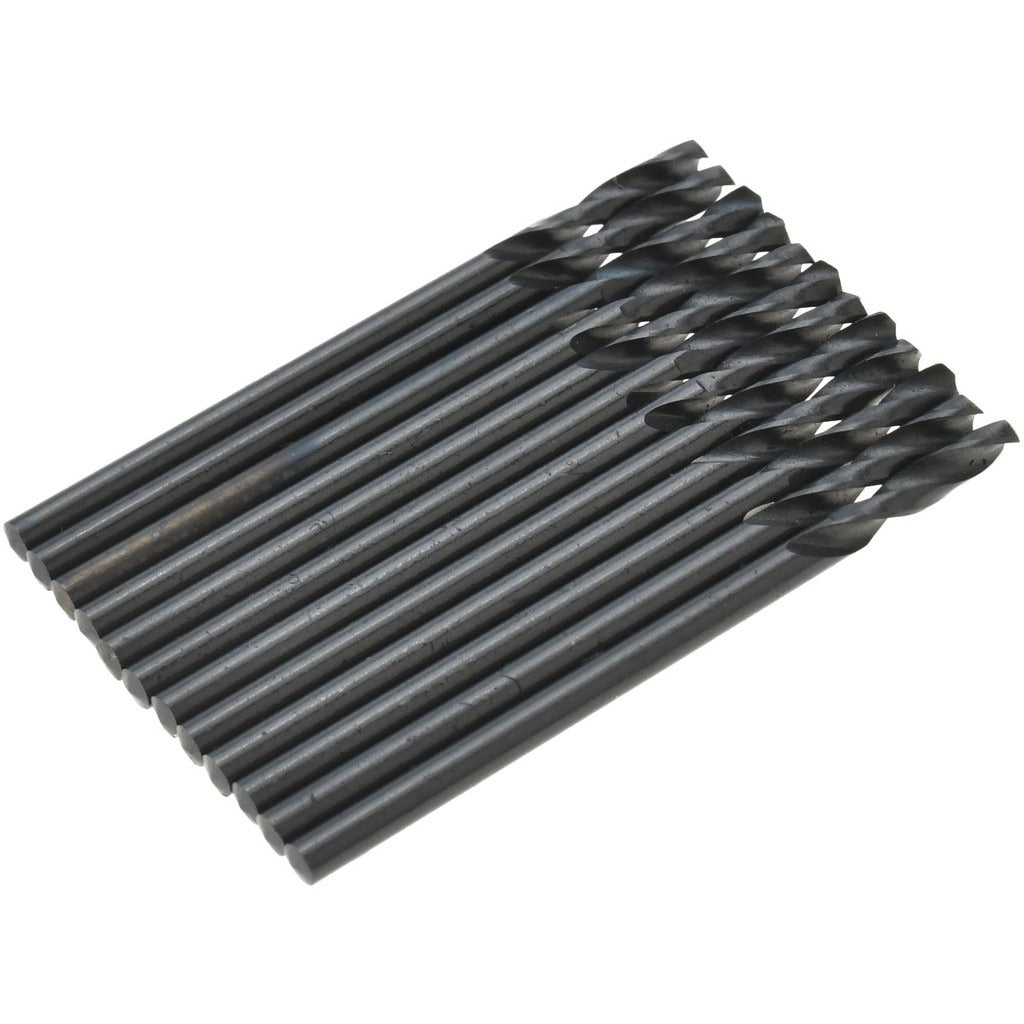

Value Collection 01291103 2.00 Mm Hss Screw Machine Drill Bit

Product Description

The VALUE COLLECTION 01291103 is a screw machine length drill bit designed for short-hole drilling in metal, plastic, and wood where a stubby, rigid profile is required. Ground from high-speed steel (HSS) with an oxide coating for reduced friction and improved chip evacuation, this bit features a 118-degree standard point angle and a regular spiral flute for reliable cutting performance. At 38.00 mm (1.496 inches) overall length with a 12.00 mm flute length, it fits standard drill chucks and machining centers. The straight cylindrical shank and right-hand cutting direction make it compatible with conventional drill presses, CNC machines, and handheld power drills used by machinists, tool-and-die workers, and maintenance technicians.

This bit is suited for general-purpose drilling operations in light to medium production environments. The 2.00 mm diameter (0.0787 inches) targets precision hole work in thin-gauge metals and small components common in manufacturing and repair workflows. The screw machine length profile reduces deflection compared to jobber-length bits, making it the preferred choice when drilling close to fixtures, in tight workspaces, or where hole straightness is critical. Sold individually, with a minimum order quantity of 12 units.

Key Features

• 2.00 mm (0.0787 inch) diameter for precision small-hole drilling
• 118-degree standard point angle for general-purpose use on metal and plastic
• High-speed steel construction with oxide coating for friction reduction
• Screw machine length body (38.00 mm overall) reduces deflection in tight setups
• Right-hand cutting, regular spiral flute, straight cylindrical shank
• Web-thinned geometry improves penetration and reduces thrust force

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with standard drill chucks, drill presses, and CNC spindles accepting straight cylindrical shanks in the 0.0000 to 0.1000 inch (0.00 to 3.50 mm) drill size range.

Installation Notes

Install and remove drill bits only with the machine fully powered down and the spindle at a complete stop. Secure the straight shank firmly in the chuck or collet before operation to prevent slippage and bit damage. Use appropriate cutting fluid when drilling ferrous metals to extend tool life. Follow applicable workplace safety standards and machine manufacturer guidelines for speed and feed settings.
