Value Collection 01243450 Jobber Drill 3.45mm Hss 118 Deg

Product Description

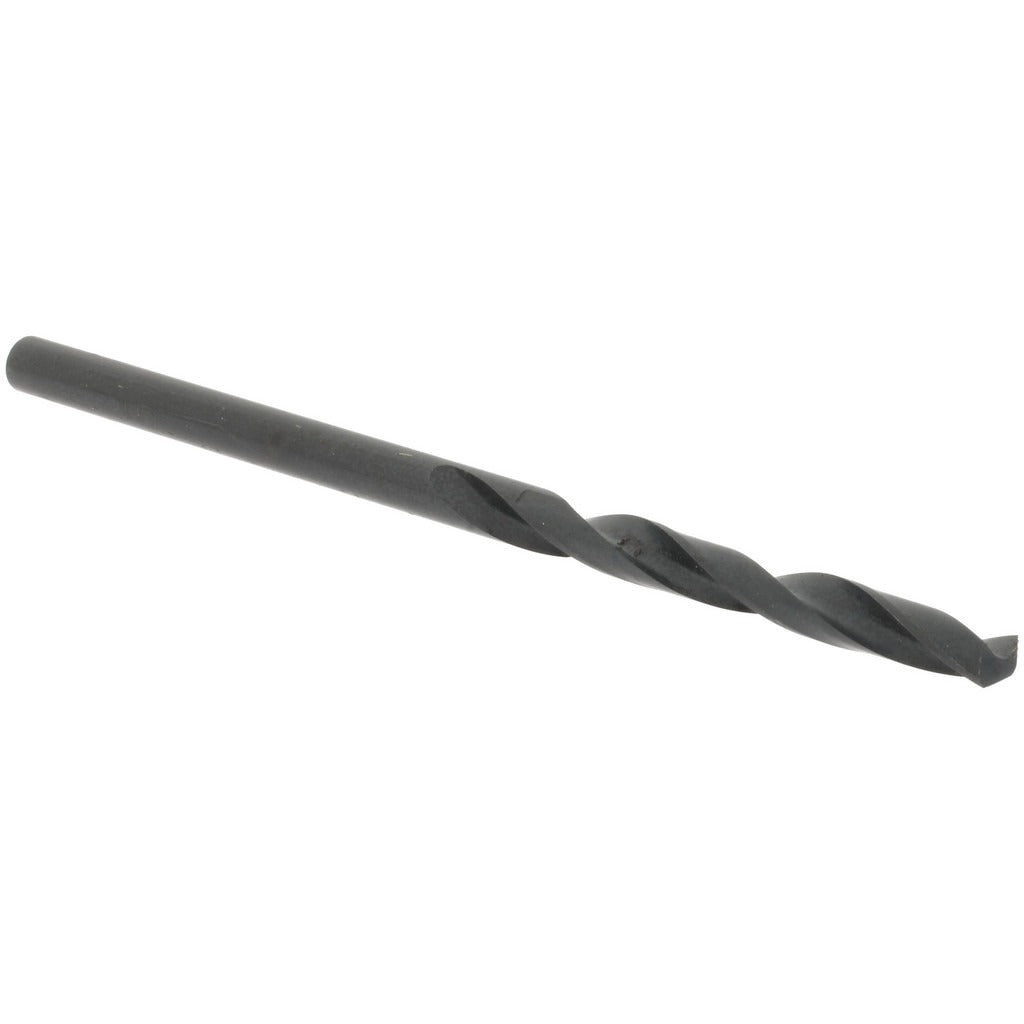

The VALUE COLLECTION 01243450 is a high speed steel (HSS) jobber-length drill bit ground to a 118-degree standard point angle and finished with an oxide coating for basic corrosion resistance. Measuring 3.45 mm (0.1358 inches) in diameter with an overall length of 70 mm (2.756 inches) and a flute length of 39 mm (1.535 inches), this is a general-purpose twist drill sized for everyday metalworking tasks. The straight cylindrical shank and regular spiral flute geometry make it compatible with standard keyed and keyless drill chucks. A web-thinned, tapered web configuration reduces thrust and improves chip flow at the cutting zone.

This drill bit is suited for drilling steel, cast iron, and similar ferrous workpiece materials in production, maintenance, and repair environments. The 3.45 mm diameter falls within the 3.00-4.00 mm size range commonly used for tapping prep, small fastener clearance holes, and precision layout work in fabrication shops, HVAC panel fabrication, plumbing rough-in, and general mechanical assembly. Right-hand cutting direction is standard for conventional drill press and handheld power tool operation. Sold individually, with a minimum order quantity of 10 units per purchase.

Key Features

• HSS construction with oxide coating for general-purpose ferrous drilling
• 118-degree standard point angle suits steel and cast iron applications
• Web-thinned tapered web reduces cutting resistance and improves chip evacuation
• Regular spiral, 2-flute design compatible with standard drill chucks
• Straight cylindrical shank in 3.45 mm diameter fits common chuck sizes
• Overall length of 2.756 inches provides jobber-length reach for typical drilling depths

Compatibility

Designed as a general-purpose jobber drill bit for use with standard keyed or keyless drill chucks accepting straight-cylindrical shanks in the 3.00-4.00 mm range, suitable for steel and cast iron workpieces.

Installation Notes

Installation of drill bits should be performed by qualified trades personnel familiar with rotating cutting tool safety. Secure the shank fully in the chuck and verify concentricity before operation. Always wear appropriate eye protection and ensure the workpiece is clamped or fixtured before drilling. Inspect the cutting edges for wear or chipping before each use and replace bits that show signs of dulling to prevent workpiece damage or drill breakage.
