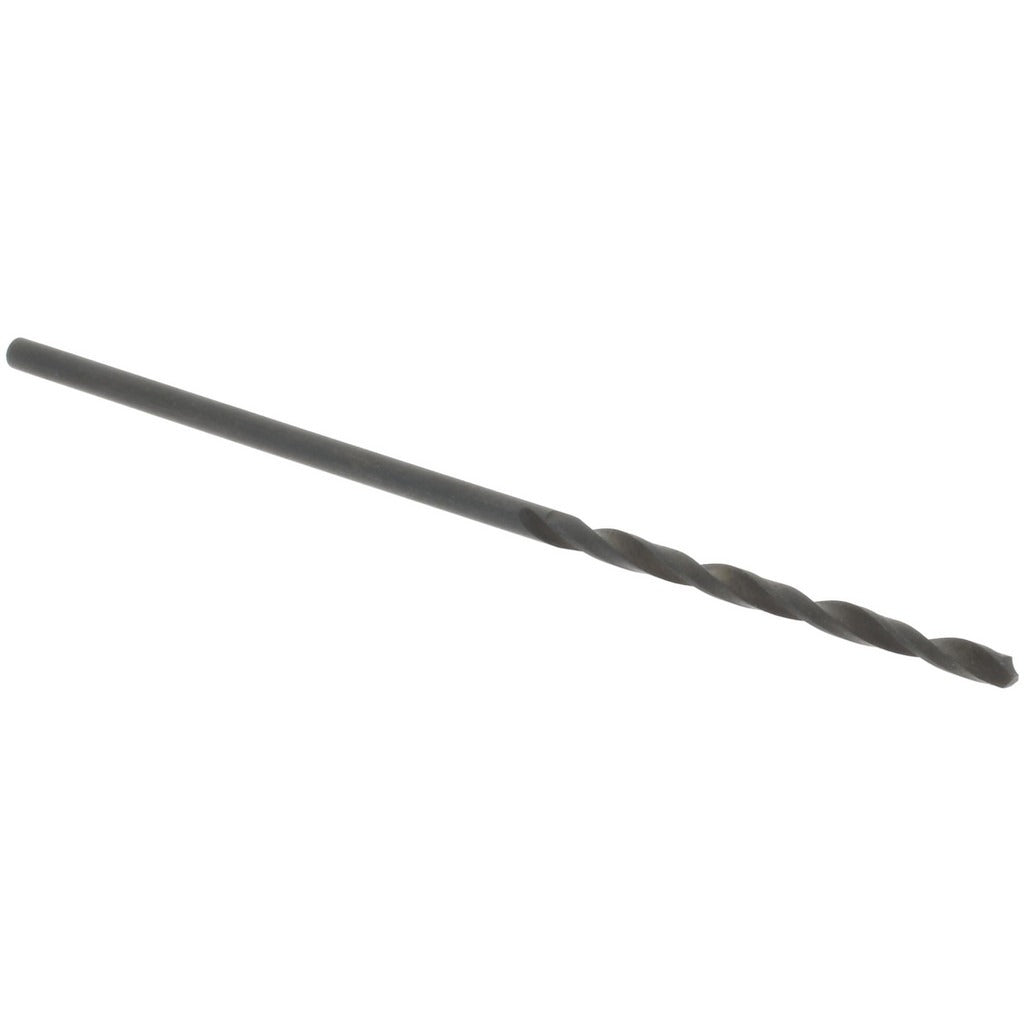

Value Collection 01241306 Jobber Drill Bit 1.30mm Hss

Product Description

The VALUE COLLECTION 01241306 is a high speed steel jobber-length drill bit designed for general-purpose drilling in metal fabrication, maintenance, and light industrial applications. Ground to a standard 118-degree point angle with a web-thinned, tapered web configuration, it reduces the thrust needed to start and penetrate a hole. The 1.30 mm (0.0512 inch) diameter and straight cylindrical shank make it compatible with standard drill chucks. An oxide coating provides light corrosion resistance and helps reduce friction at the cutting edge. The right-hand, regular spiral flute geometry evacuates chips efficiently in typical through-hole and blind-hole operations on steel and cast iron.

This drill bit is suited for machine shop, production, and field maintenance work where small-diameter precision holes are required. Primary target workpiece materials are steel and cast iron, making it appropriate for fabricators, pipefitters, millwrights, and maintenance technicians working with ferrous stock. The 55/64-inch flute length and 1-57/64-inch overall length fit the jobber standard, giving adequate depth capacity for most light-gauge and thin-stock drilling tasks. Sold individually, with a minimum order quantity of 10 units.

Key Features

• 1.30 mm (0.0512 inch) diameter with matching straight cylindrical shank diameter of 0.0512 inch
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• High speed steel construction for durability on steel and cast iron workpieces
• Oxide coating for light corrosion resistance and reduced cutting friction
• Right-hand, regular spiral flute design promotes efficient chip evacuation
• Jobber-length geometry: 55/64-inch flute length, 1-57/64-inch overall length

Compatibility

Designed as a general-purpose jobber drill bit for use on steel and cast iron workpieces. Straight cylindrical shank fits standard keyed and keyless drill chucks accepting 0.0512-inch shank diameter bits.

Installation Notes

Installation is performed by machinists, fabricators, or maintenance technicians using a drill press, CNC machine, or handheld drill. Secure the shank fully in the chuck and verify concentricity before operation. Use cutting fluid or coolant appropriate for the workpiece material to extend tool life, especially in production drilling. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed to avoid work-hardening the bore.
