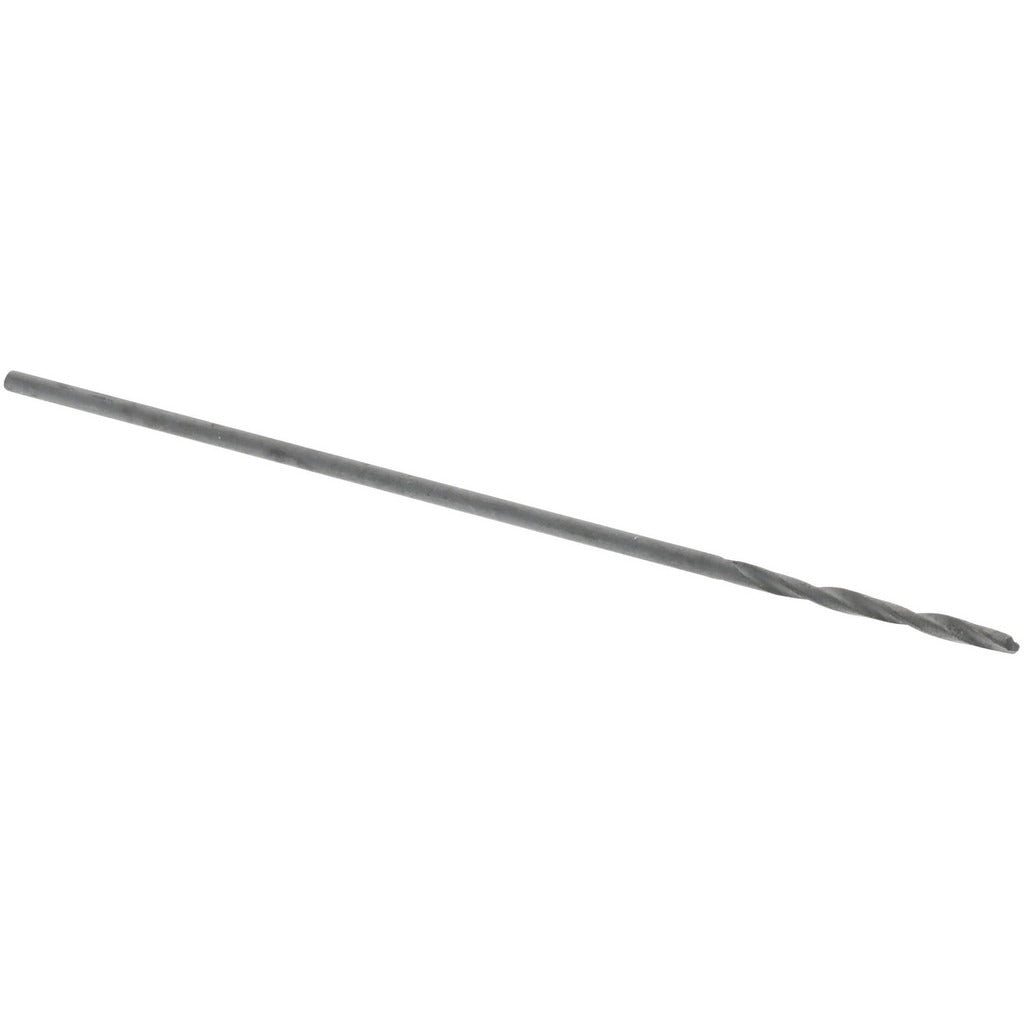

Value Collection 01188713 No. 71 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188713 is a No. 71 wire-size jobber-length drill bit designed for precision drilling in metal fabrication and maintenance applications. Manufactured from high speed steel (HSS) with an oxide coating for added surface hardness and corrosion resistance, this bit features a 118-degree standard point angle suited for general-purpose drilling into steel and cast iron. The straight cylindrical shank measures 0.0260 inches in diameter, matching the 0.0260-inch drill diameter. A right-hand spiral flute with a regular spiral pattern and tapered web configuration facilitates efficient chip evacuation. Licensed trades and skilled machinists rely on this bit for consistent, repeatable hole quality in light to medium-duty metalworking tasks.

This jobber drill bit is intended for use on steel and cast iron workpieces in general-purpose drilling applications. With an overall length of 1.25 inches and a flute length of 0.375 inches, it is well suited for tight-clearance drilling situations where a standard-length bit would be impractical. The bit fits into any drill press, CNC machine, or handheld drill with a chuck rated for straight-shank tooling at this diameter. It is appropriate for job site use, shop floor maintenance, and production drilling tasks requiring small-diameter hole placement.

Key Features

• No. 71 wire gauge size with a decimal diameter of 0.0260 inches for precise small-diameter drilling
• 118-degree standard point angle with web-thinned, tapered web configuration for reduced thrust and accurate starting
• High speed steel construction provides durability and heat resistance in ferrous metal applications
• Oxide coating adds surface hardness and mild corrosion resistance to extend service life
• Right-hand, regular spiral flute promotes effective chip evacuation during through-hole and blind-hole drilling
• Straight cylindrical shank compatible with standard drill chucks across a wide range of equipment

Compatibility

Designed as a general-purpose replacement or stock drill bit for use in any drill press, hand drill, or CNC drilling setup capable of accepting a straight-shank bit at 0.0260 inches diameter. Rated for drilling into steel and cast iron workpieces.

Installation Notes

Installation and use of small-diameter drill bits should be performed by machinists or qualified trade professionals familiar with safe drilling practices. Secure the workpiece firmly before drilling to prevent walkout and bit breakage at this diameter. Ensure the drill chuck is properly tightened and the bit is fully seated before operation. Cutting fluid is recommended when drilling into steel to reduce heat buildup and extend bit life.
