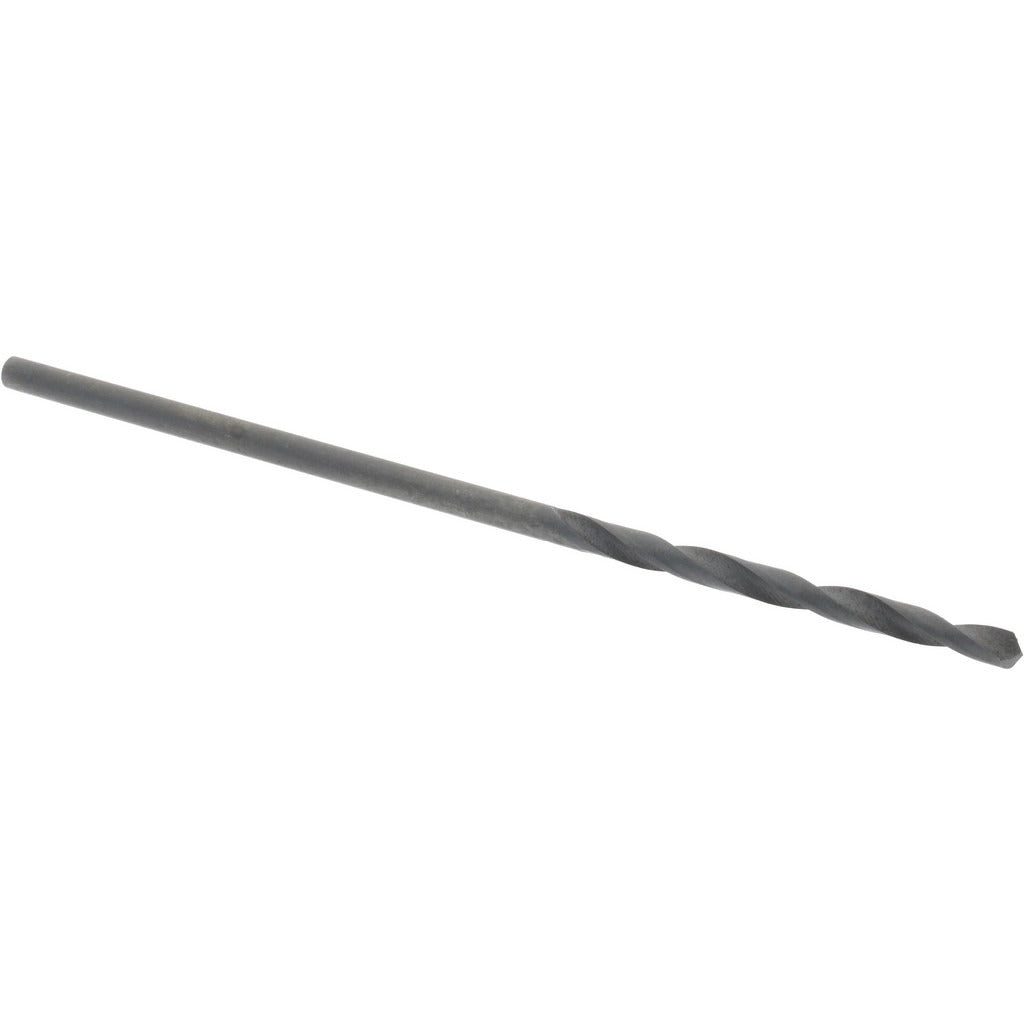

Value Collection 01188531 No. 53 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188531 is a No. 53 wire gauge jobber-length drill bit designed for general-purpose drilling in steel and cast iron. Built from high speed steel (HSS) with an oxide coating for added surface hardness and basic corrosion resistance, this bit features a standard 118-degree split point and a regular spiral flute with a web-thinned, tapered web configuration. It measures 1.875 inches overall length with a 0.875-inch flute length and a straight cylindrical shank diameter of 0.0595 inches. Right-hand cutting direction is standard. Machinists, maintenance technicians, and general metal fabricators use this bit for precision small-hole work in ferrous materials.

This bit is sized at 0.0595 inches (wire gauge No. 53) and is suited for production and maintenance drilling in steel and cast iron workpieces. Its jobber-length geometry balances reach and rigidity for use in bench drills, drill presses, and hand-held power drills. The two-flute regular spiral design clears chips efficiently from small-diameter holes. This is a general-purpose grade bit appropriate for light-to-moderate production volumes and everyday shop or field maintenance tasks. Coolant-through capability is not supported on this bit.

Key Features

• No. 53 wire gauge size — 0.0595-inch decimal equivalent for precision small-bore work
• 118-degree standard point angle with web-thinned, tapered web for reduced entry force
• High speed steel construction with oxide coating for surface hardness and basic corrosion resistance
• Regular spiral two-flute design for efficient chip evacuation in ferrous materials
• Straight cylindrical shank fits standard drill chucks without adapters
• Right-hand cutting direction compatible with all standard drill drivers and presses

Compatibility

Designed as a general-purpose jobber drill bit for drilling steel and cast iron; fits any standard drill chuck accepting a 0.0595-inch straight shank.

Installation Notes

Installation of drill bits should be performed by a qualified machinist or technician using properly rated drilling equipment. Secure the workpiece and verify chuck tightness before operation. Always wear appropriate eye protection when drilling ferrous materials. Do not exceed the rated speed range for the bit diameter and material combination.
